Tailstock Rear Rack-CDCR0012
-
-
TAIPEICYCLE d&i awards 2017 by iF
-

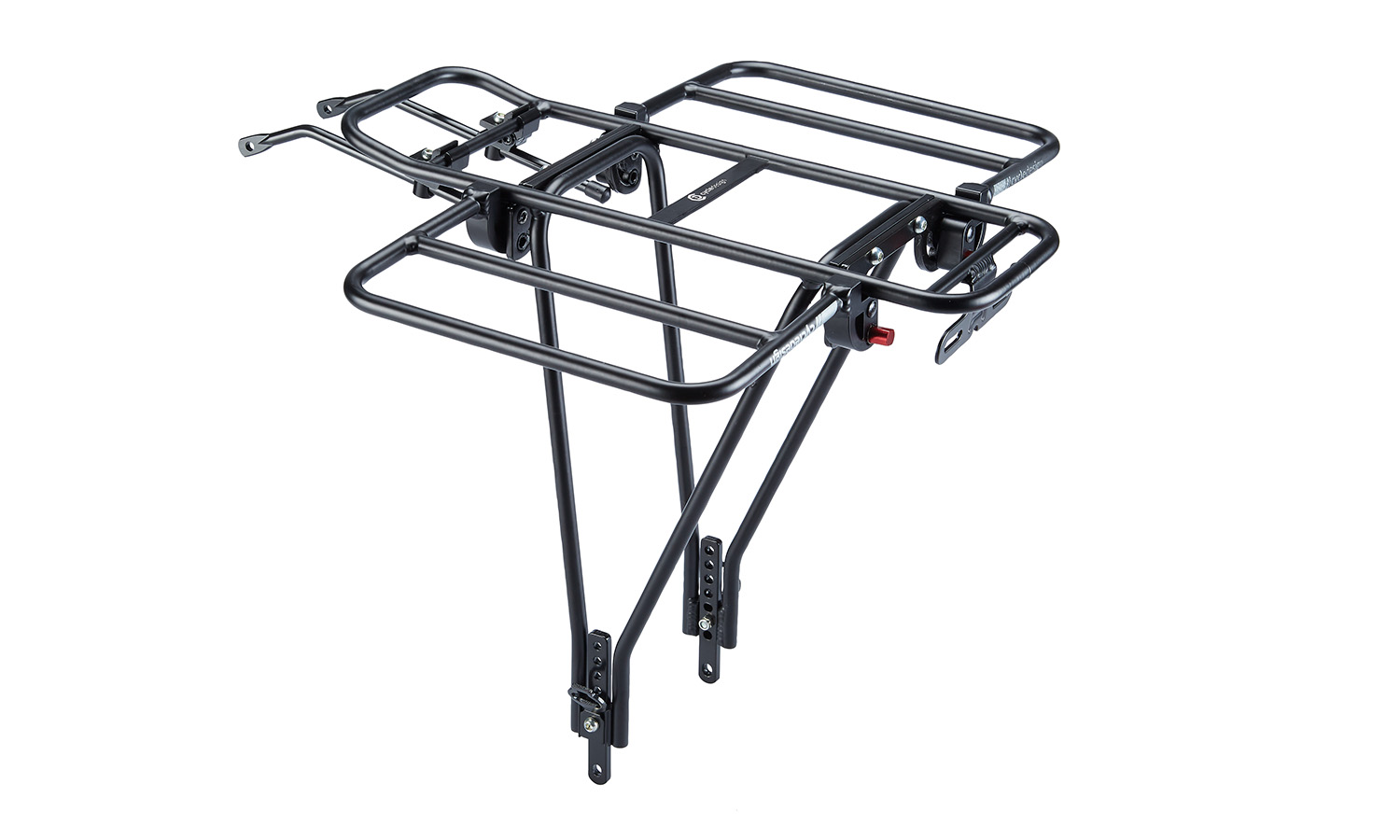

Unfold the wings when large cargo loading needed
-
Bilateral wings expand rack level from 5" to 16" wide
-
-
TAIPEICYCLE d&i awards 2017 by iF
-
Unfold the wings when large cargo loading needed
-
Bilateral wings expand rack level from 5" to 16" wide

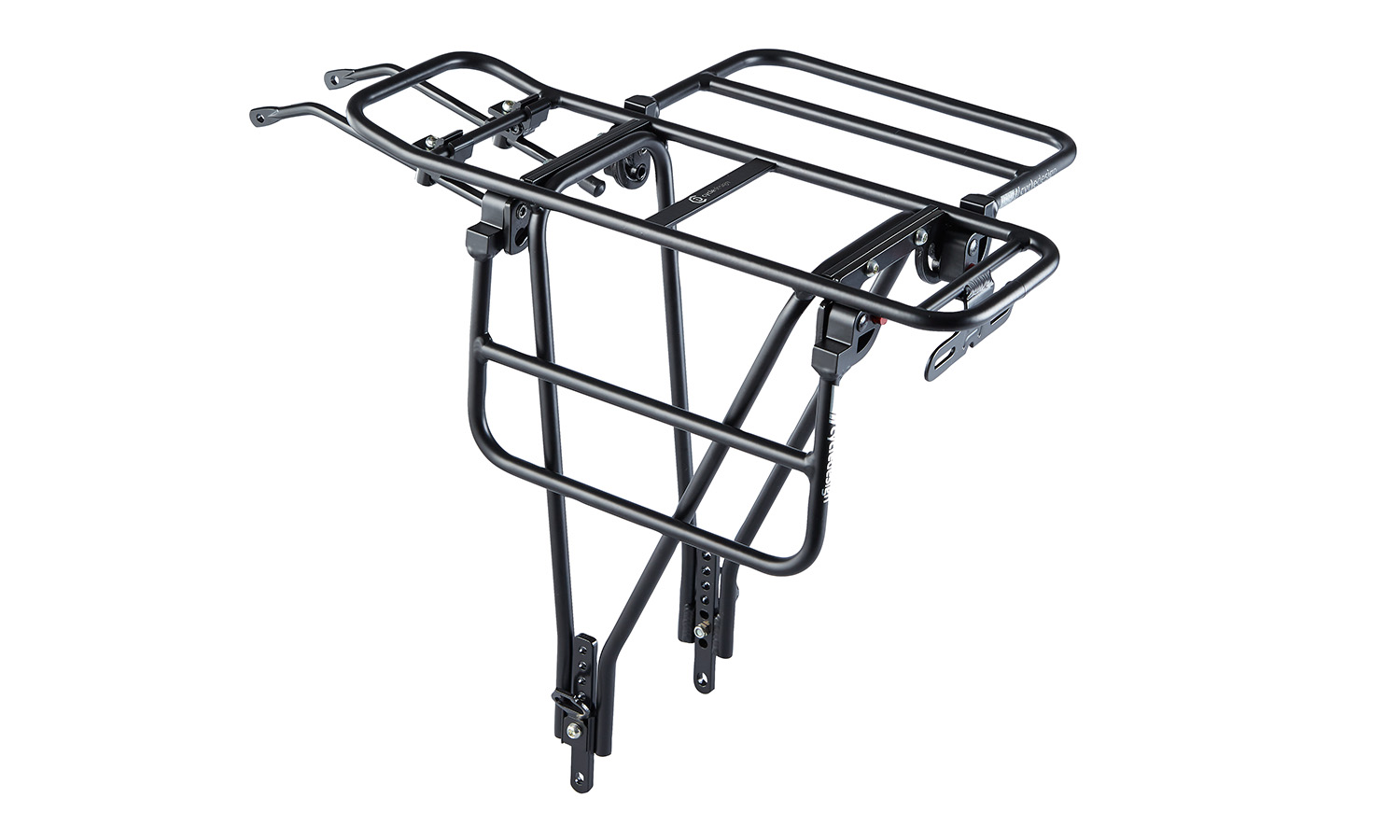

The TRAILSTOCK rear bike rack is design with broaden wing to increase stroage space.

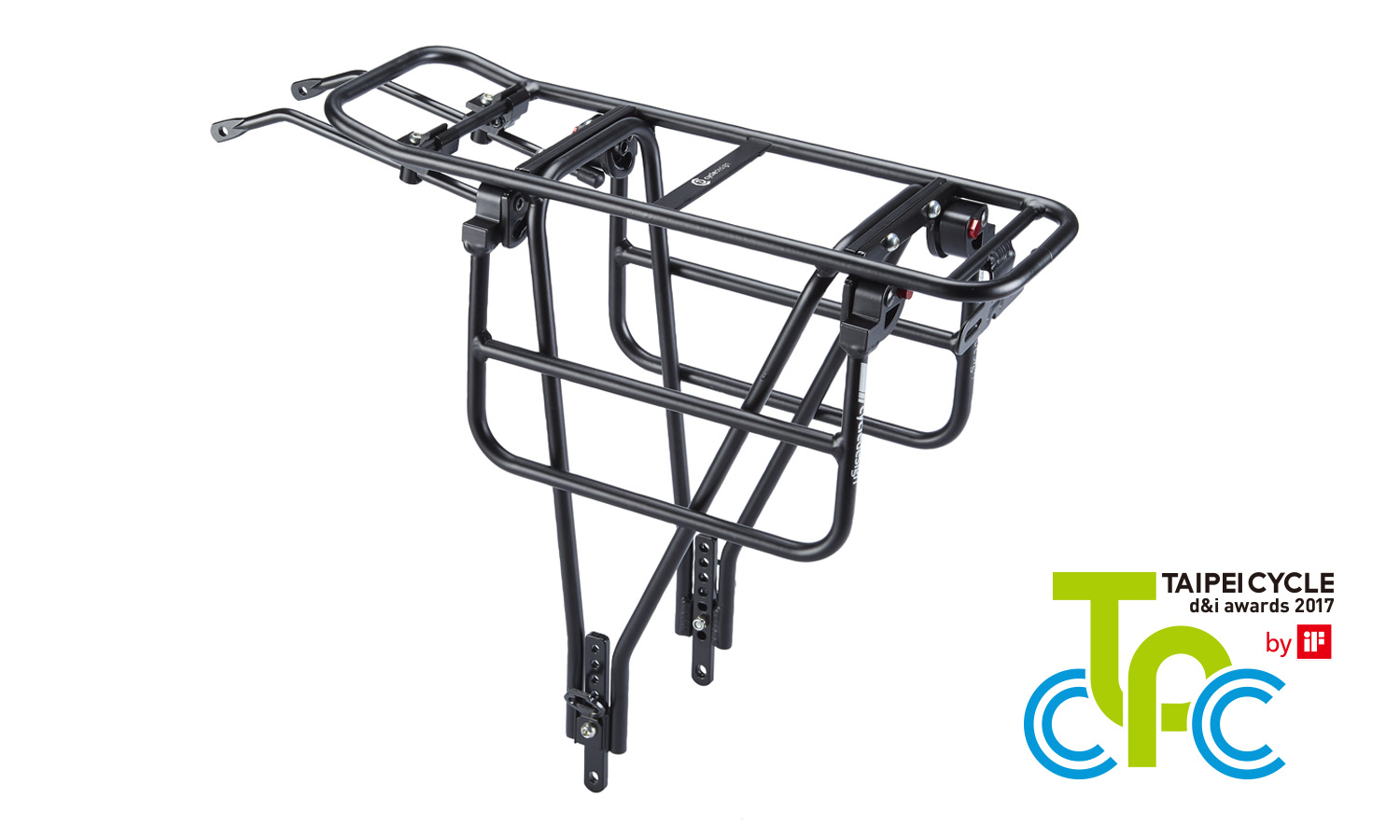

This rack won Product Creative Design Award of TAIPEICYCLE d&i awards 2017 by iF
TRAILSTOCK is an innovation product and supplied with unique red press buttons
on the bilateral to unfold the wings on both sides.
You could unfold the wings when large cargo loading needed.
Made of lightweight hollow tubular aluminum construyction that allows it to support a
high loading.
Optimized struts are both adjustable to fit most wheel sizes like mount bikes,
road bikes and commute bike.
Equipped with hooks structure allows to be fixed by using suitable elastic strap,
and with reflective bracket mount for rear light.
Precisely crafted from extruded mechanism metal aluminum and lightwieght hollow tube
with excellent finishes.
High quality, durable and tough luggage rack for big capacity of weight.
This rack won Product Creative Design Award of TAIPEICYCLE d&i awards 2017 by iF
TRAILSTOCK is an innovation product and supplied with unique red press buttons
on the bilateral to unfold the wings on both sides.
You could unfold the wings when large cargo loading needed.
Made of lightweight hollow tubular aluminum construyction that allows it to support a
high loading.
Optimized struts are both adjustable to fit most wheel sizes like mount bikes,
road bikes and commute bike.
Equipped with hooks structure allows to be fixed by using suitable elastic strap,
and with reflective bracket mount for rear light.
Precisely crafted from extruded mechanism metal aluminum and lightwieght hollow tube
with excellent finishes.
High quality, durable and tough luggage rack for big capacity of weight.
Material : Hollow Aluminum 6061 T-6
Size : 400mm*330mm*165mm
Bilateral wings expand rack level from 5" to 16" wide
Strut extend to about 6cm
Mount bracket for rear reflective
Hooks*2pcs
Weiight : 830g
Max. Loading : 27kgs (60lbs)
Suitable 26" to 29" bikes
Strut ectend to about 9cm
Finish : Power coating black
Feature : Reflective cycledesign decal
TAIPPEICYCLE d&i awards by iF design for its stability and safety
Broaden wing to increase with ready storage space
Tough tubular aluminum, lightweight hollow tube construction for load up the cargo
Bilateral wings expand rack lever from 5" to 16" wide
Size : 400mm*330mm*165mm
Bilateral wings expand rack level from 5" to 16" wide
Strut extend to about 6cm
Mount bracket for rear reflective
Hooks*2pcs
Weiight : 830g
Max. Loading : 27kgs (60lbs)
Suitable 26" to 29" bikes
Strut ectend to about 9cm
Finish : Power coating black
Feature : Reflective cycledesign decal
TAIPPEICYCLE d&i awards by iF design for its stability and safety Broaden wing to increase with ready storage space Tough tubular aluminum, lightweight hollow tube construction for load up the cargo Bilateral wings expand rack lever from 5" to 16" wide
