BrightBar LM-300.-CDLT0176 / CDLT0177 / CDLT0178 /
  • CDLT0056 - Black
  • CDLT0057 - Titanium
  • CDLT0058 - Red
  • CDLT0110 - Blue
  • Charging Time - 4 hrs by Micro-USB
  • Max throw irradiation distance is up to 100 meters
  • CDLT0056 - Black
  • CDLT0057 - Titanium
  • CDLT0058 - Red
  • CDLT0110 - Blue
  • Charging Time - 4 hrs by Micro-USB
  • Max throw irradiation distance is up to 100 meters
The cycledesign BrightBar LM-300. is a high powered 300 Lumens bicycle front light,


with Four-mode beam with a LED front output, equipped with the powerful CREE LED

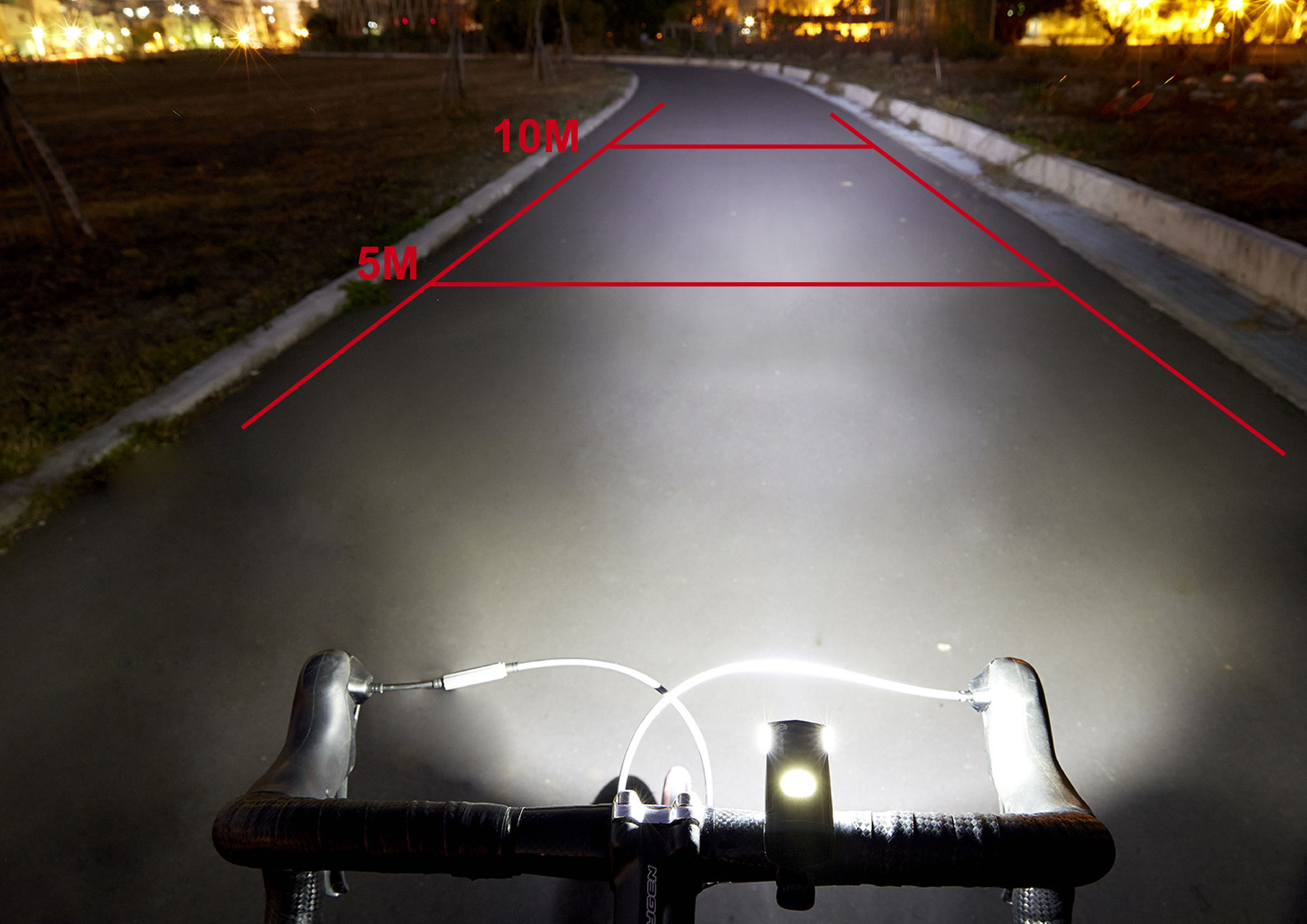

lamp bulb that the optical enhancenments max throw irradiation distance is up to 100

meters, it's useful and increasing visibility to improve the riding at night.



Made of aluminum case has certified waterproof IPX4 with high power rechargeable


battery to support powerful CREE LED bulb, built in 580mAh rechargeable by Micro-USB


cable interface input high-current recharging capability ensuring longer runtime and


reliable performance. Integral aluminum construction with tool-free strap bracket for

quick mount, and it's can be compatible for handlebar max siezs
ø40mm, and the metal

case ensure
temperature control circuit design allowing for effective LED bulb durability

and heat
dissipation performance.


Multi-Purpose headlight friendly design for oncoming vehucles and pedestrians,

Cut-Off Line design is won't cause glare and makes to
 alert drivers to your presence.

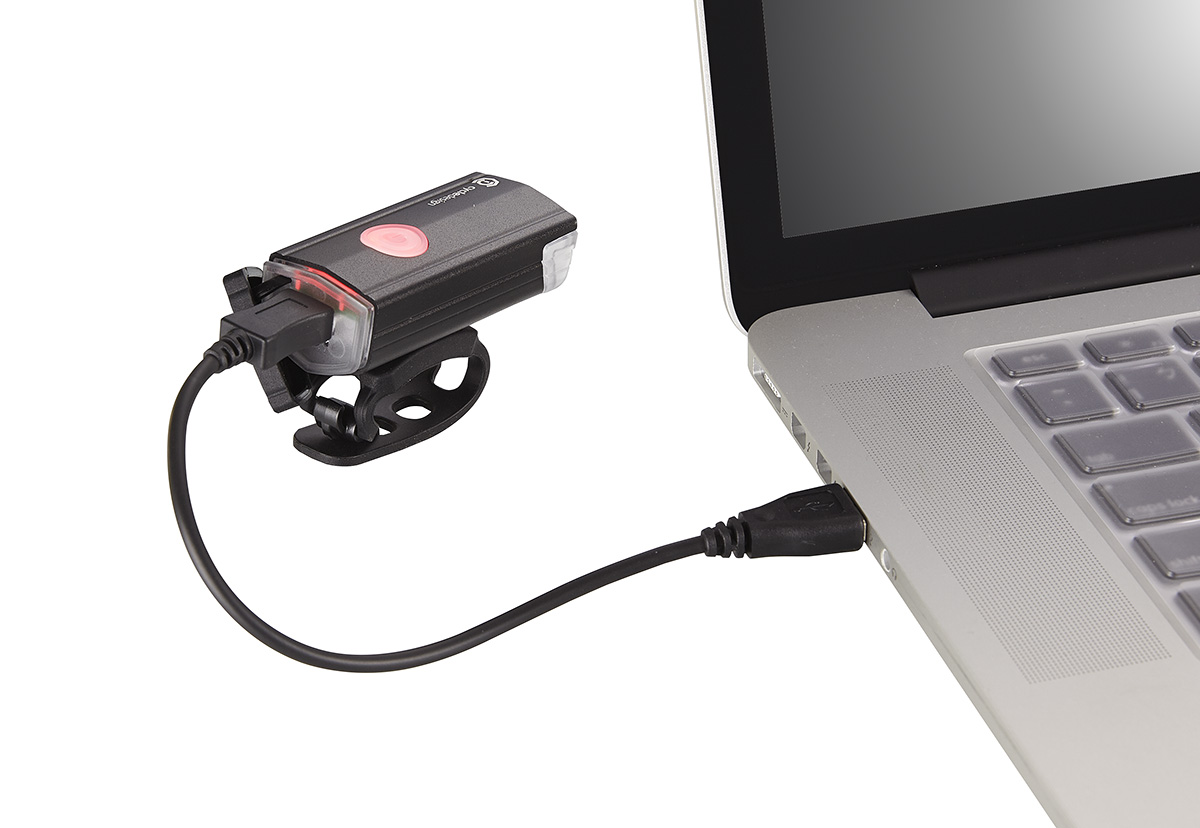

Equipped the Micro-USB rechargeable outpurt via any standard USB port

(charging is Red light flashes), and when the battery capacity is less than 10%, the

buttum will flash red light to alert and also to extend the battery power.


The compact and lightweight design is easy for protability, the tool-free strap bracket

with various mounting sizes and 360
° rotatable light angles.

In addition, to remind you how to use the high beam mode, when you turn the constant

light on, please press and hold the button for 2 seconds, it will switch to high beam.


Material : Aluminum


Max Brightness : 300 Lumens

Battery Type : Lithium Ion 580 mAh (Rechargeable)

Charge Time : 2.5 hrs by Micro-USB (DC5V / 0.5A)

Bulb : CREE LED * 1 pc


Light Modes :        Mid Beam        Low Beam              Press and hold 2 sec.
Max RumTime :     2 hrs                   6 hrs

      1.5 sec.      Flashing             Strobe                 High Beam
OFF               12 hrs                 60 hrs                1 hrs




Included Micro-USB Cable * 1 pc

Strap Bracket : Handlebar mount ø20mm ~ ø40 mm

Size : 66 * 29 * 22 mm

Weight : 50 g

Certified Weightproof IPX4

Feature : cycledesign logo / Made In Taiwan


 High power lighting 300 lumens, equipped with powerful CREE LED bulb

 Cut-Off Line design won't cause glare for oncoming vehicles and pedestrians

 Automatically switch mode to save and reduce battery capacity


 Aluminum case with good heat dissipation and with versatile lighting modes for safe

    riding


Item :               Finish :

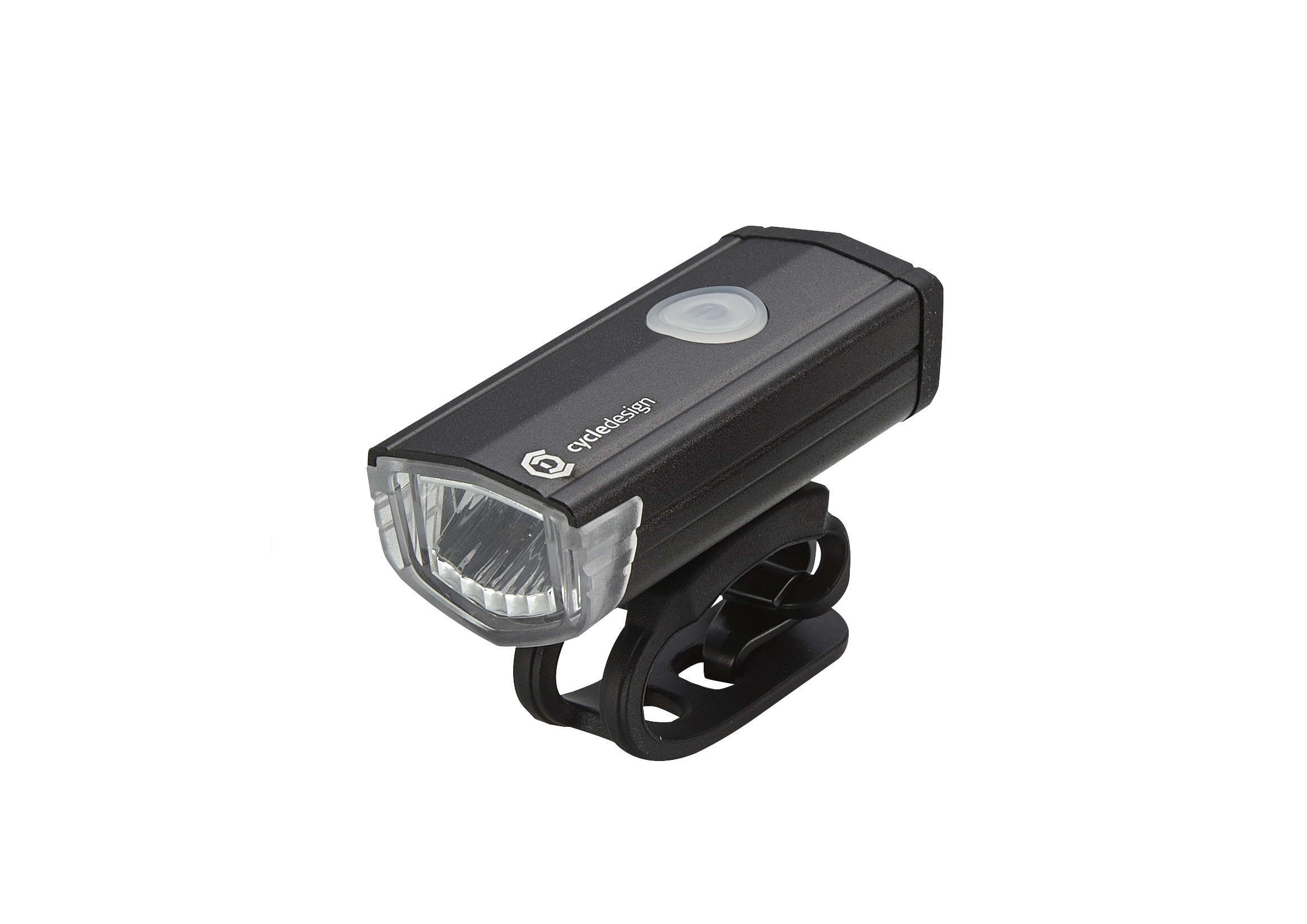

CDLT0056          Anodized Black

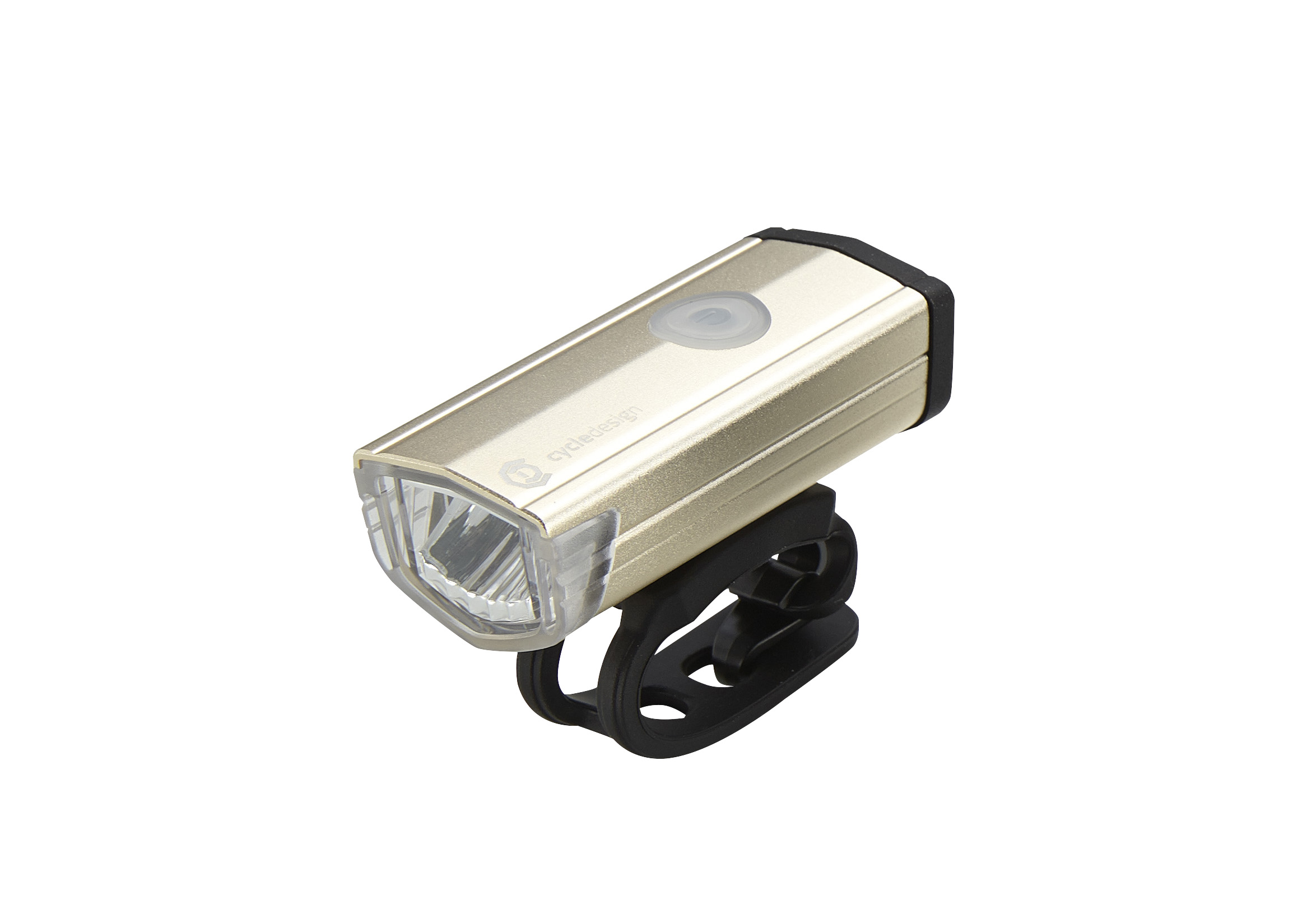

CDLT0057          Anodized Titanium

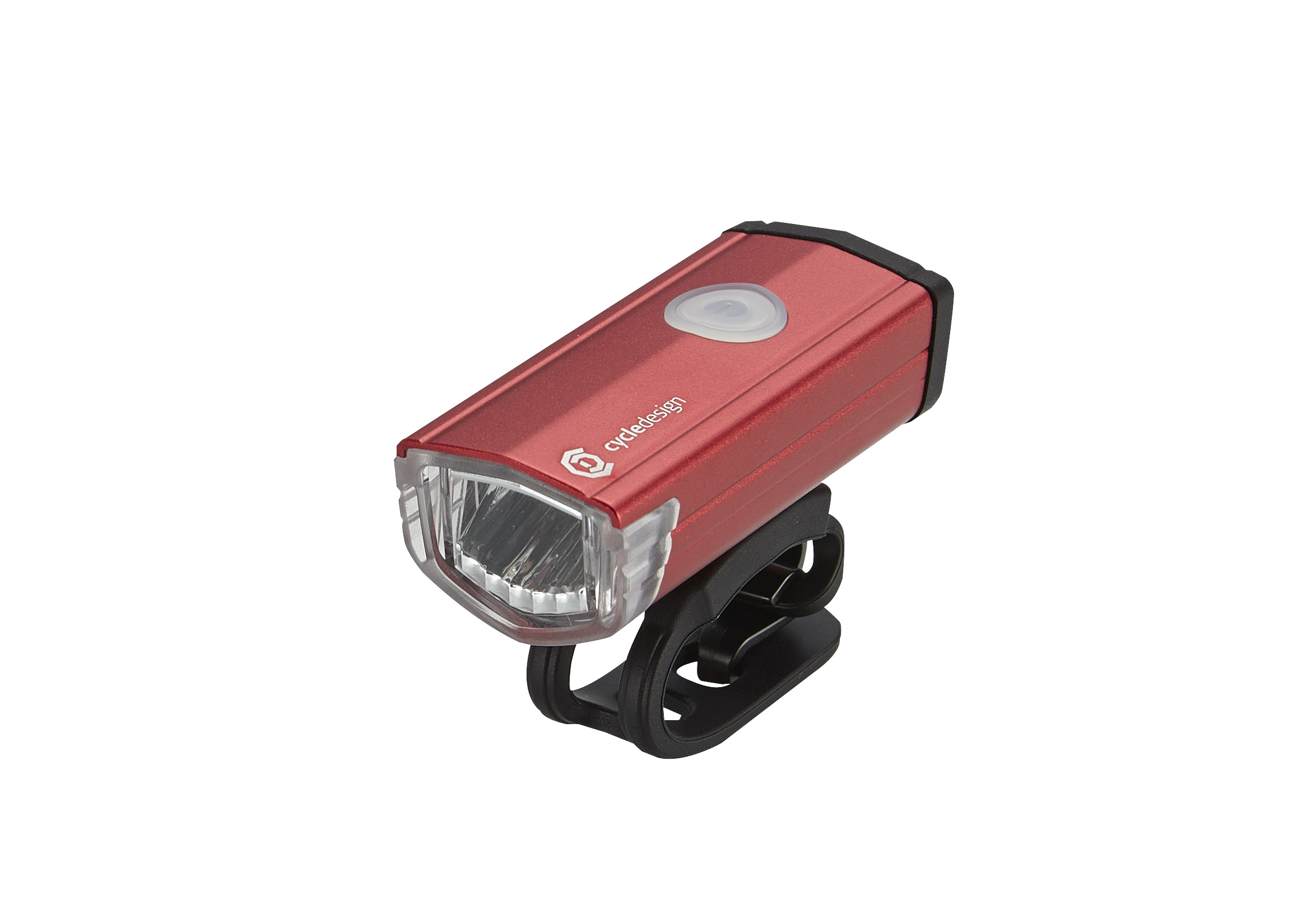

CDLT0058          Anodized Red

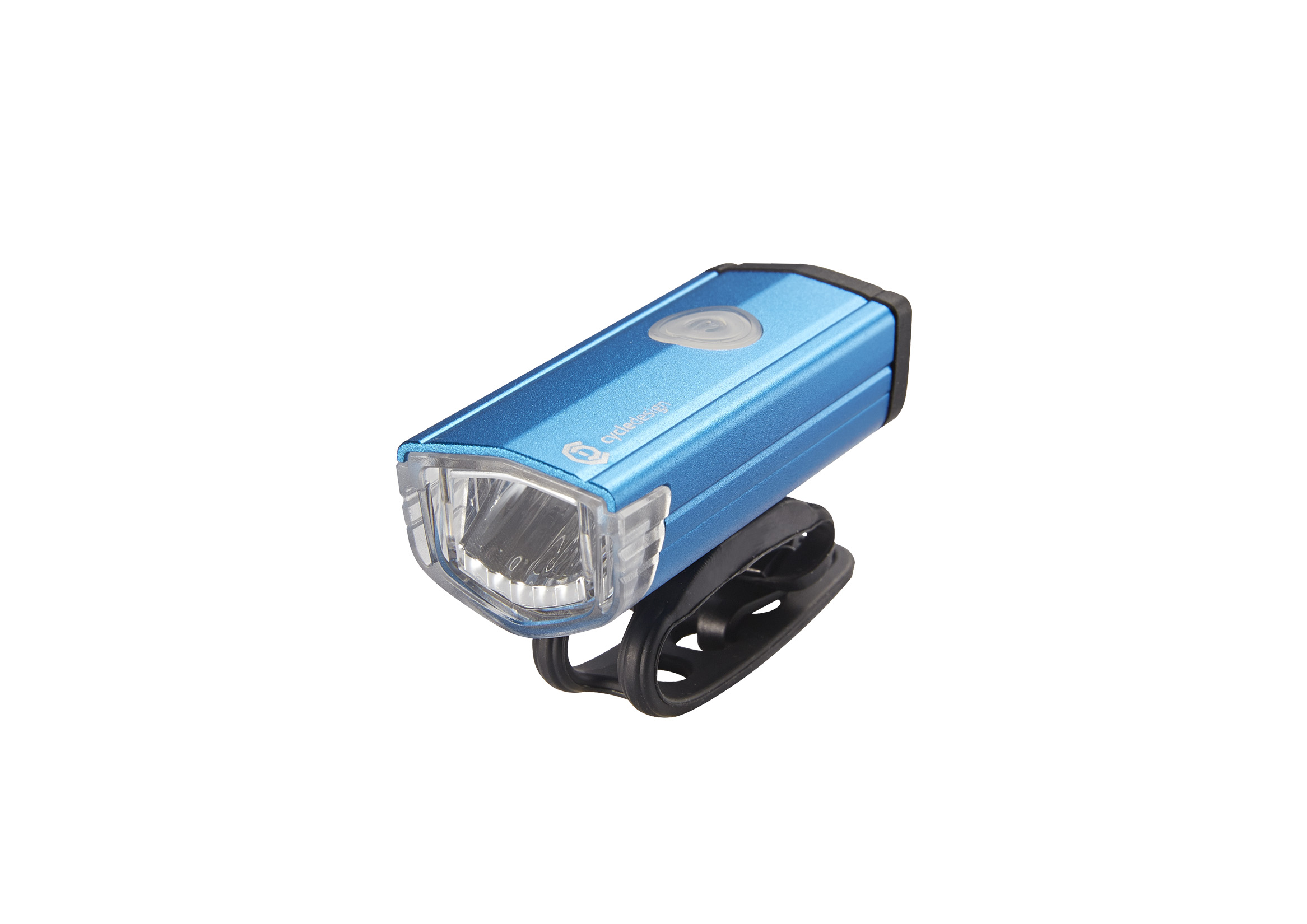

CDLT0110          Anodized Blue
