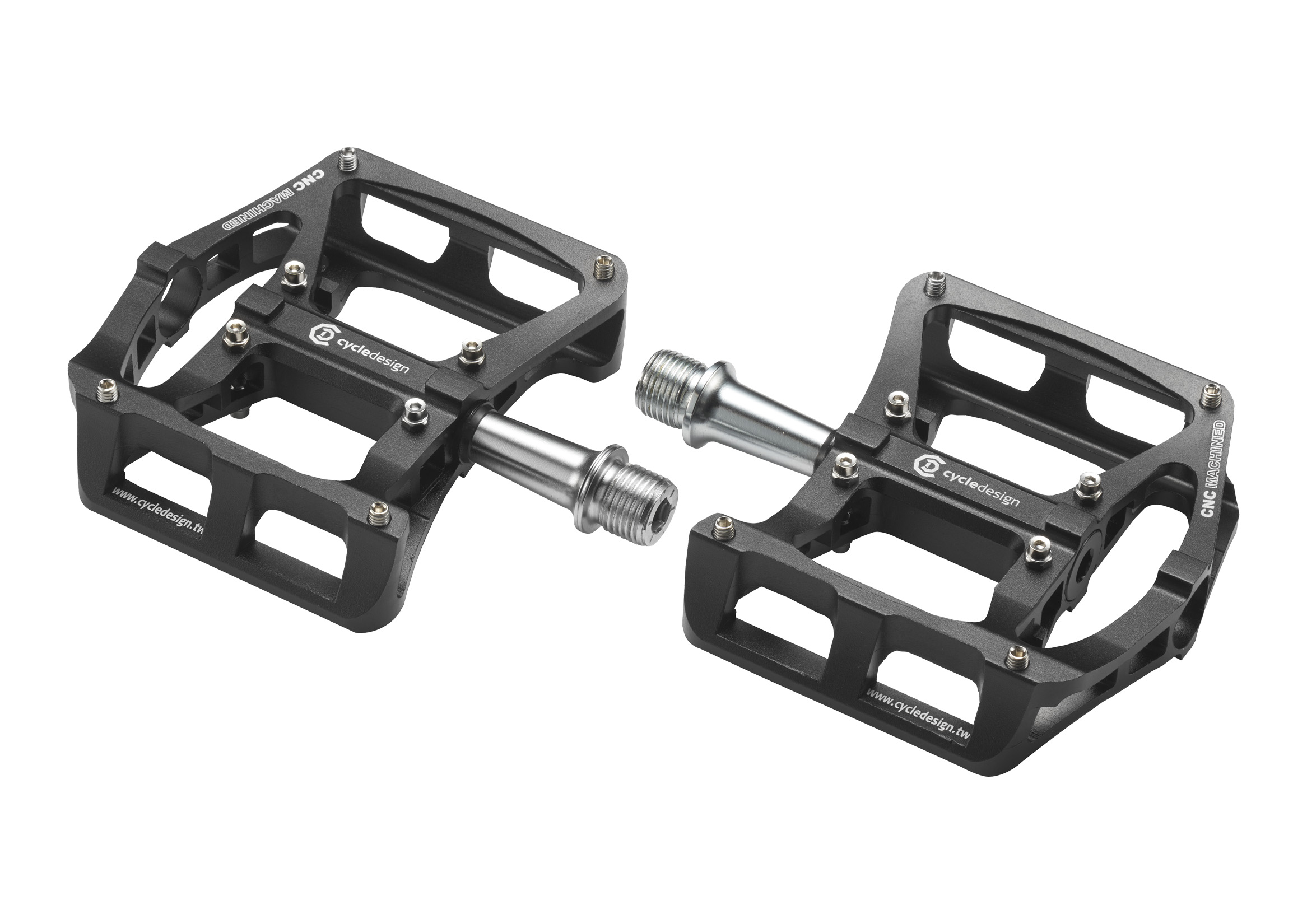

Mountain-Bike BroadCell CNC. Pedal-CDPD0014 / CDPD0015 / CDPD0016 / CDPD0017 / CDPD0018 / CDPD0019
  • CDPP0014 - Black

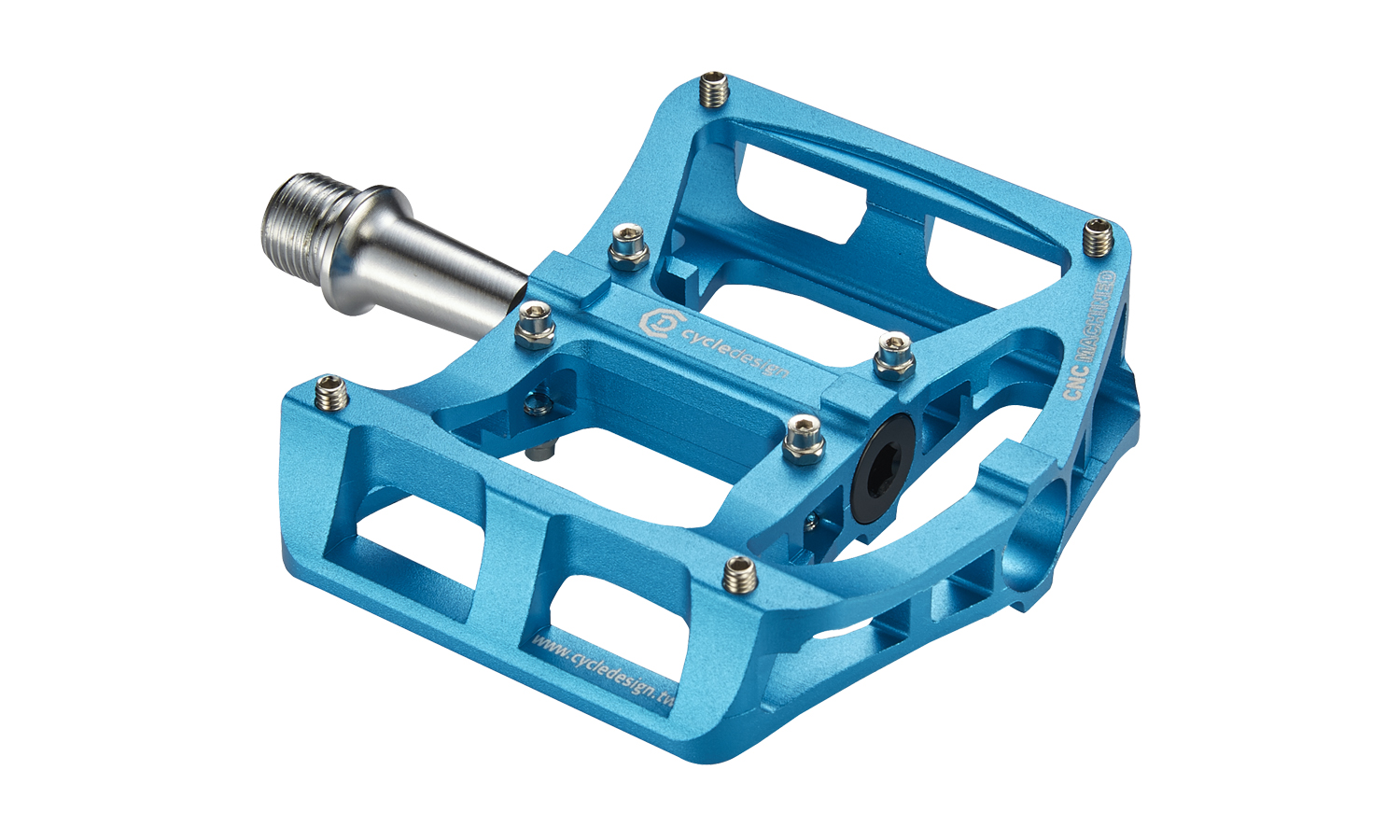

  • CDPD0015 - Blue

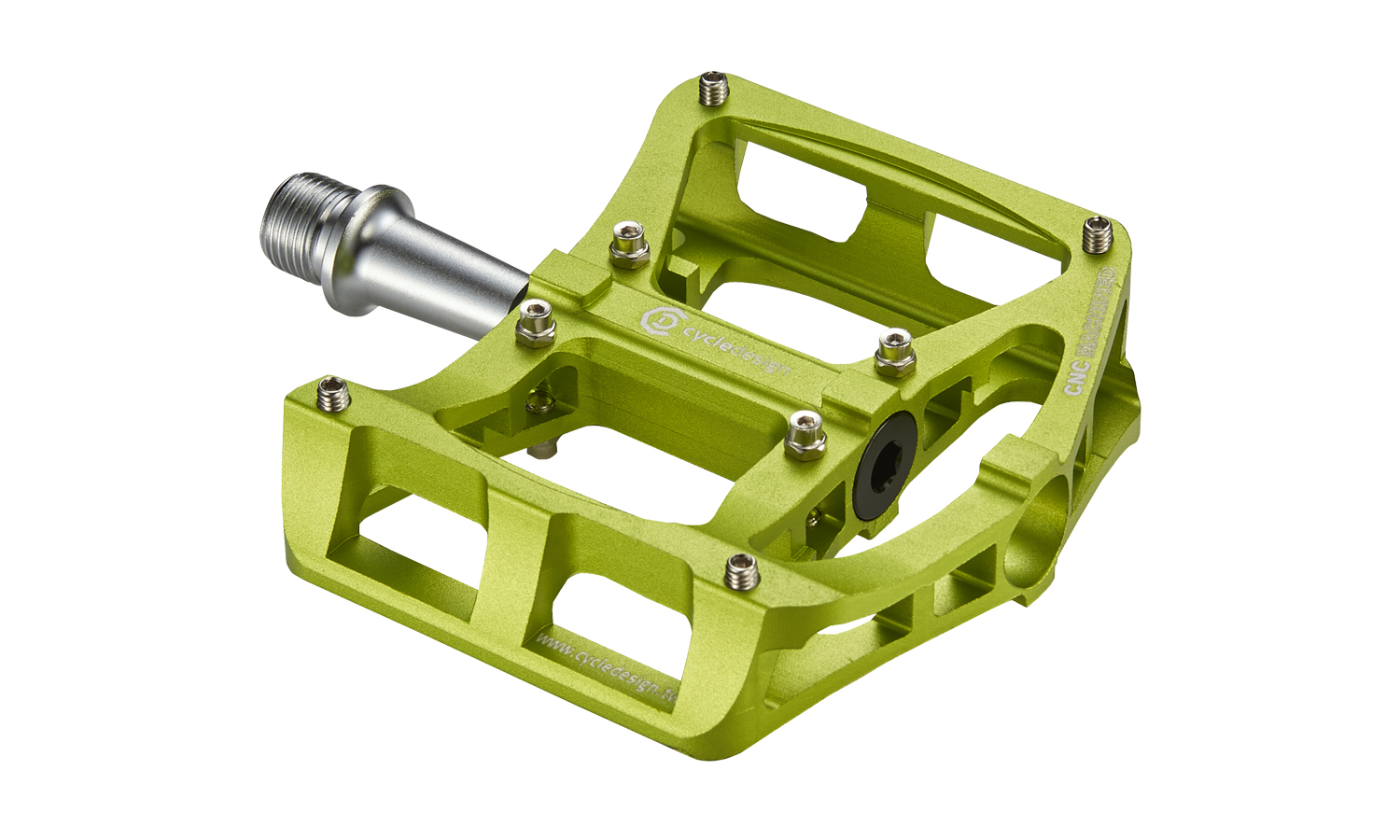

  • CDPD0016 - Green

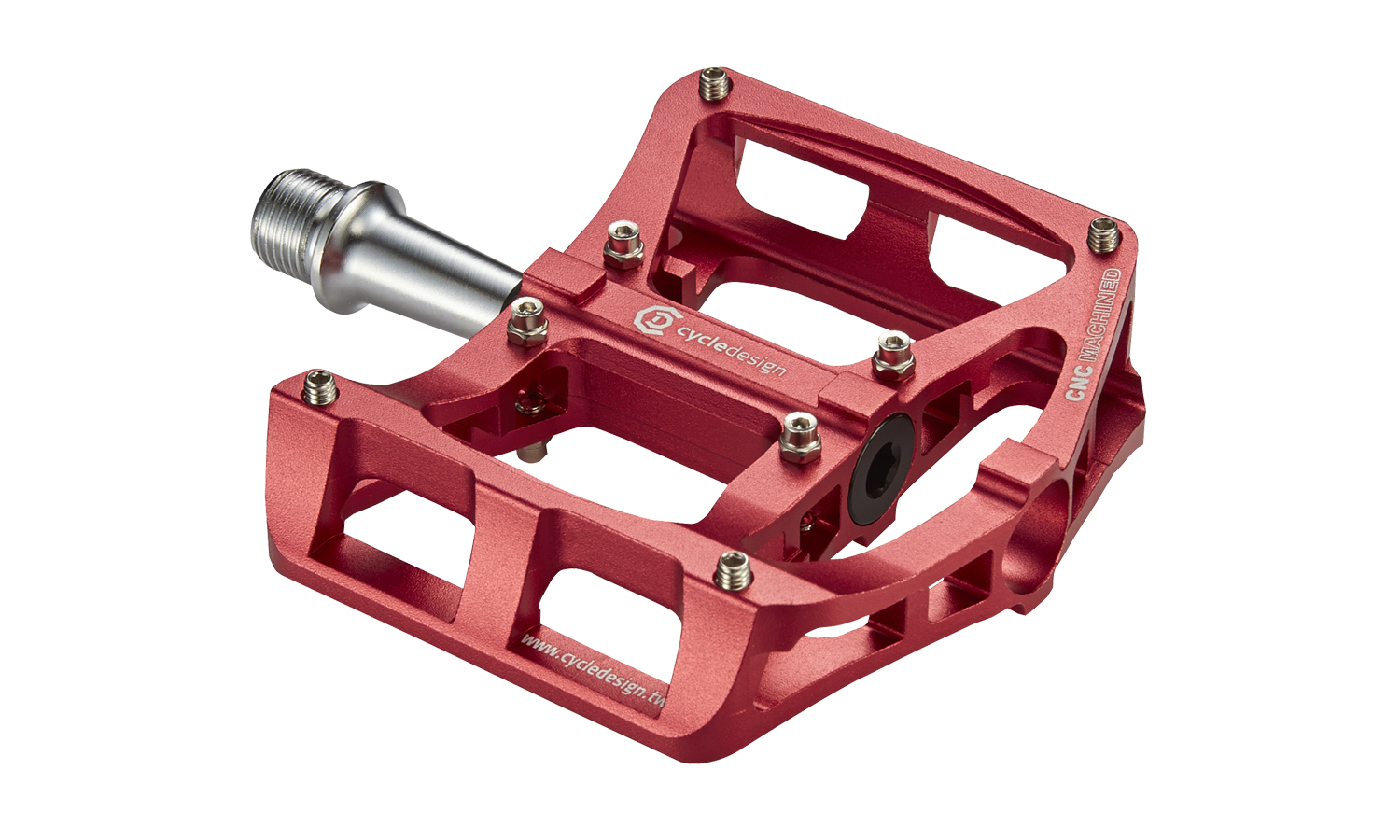

  • CDPD0017 - Red

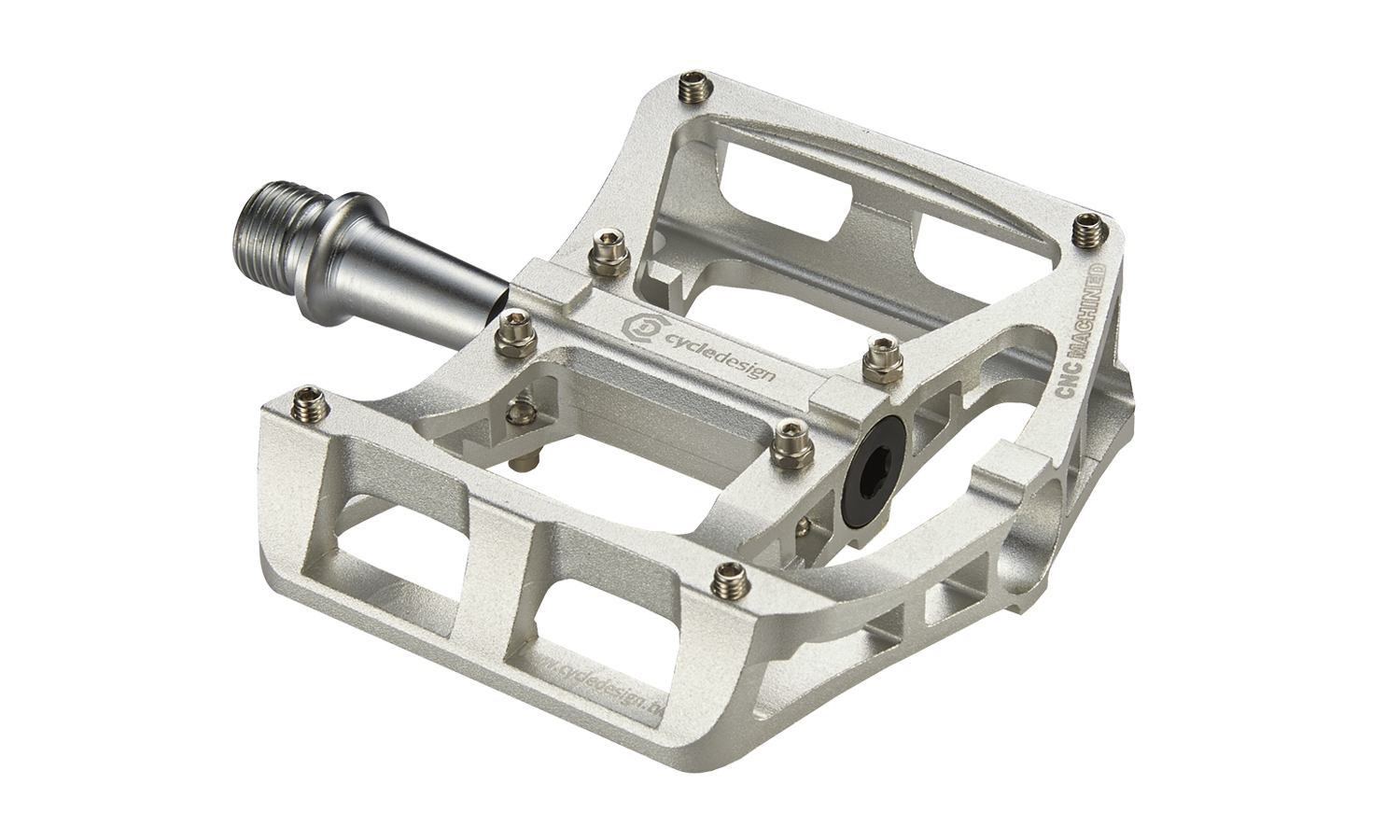

  • CDPD0018 - Silver

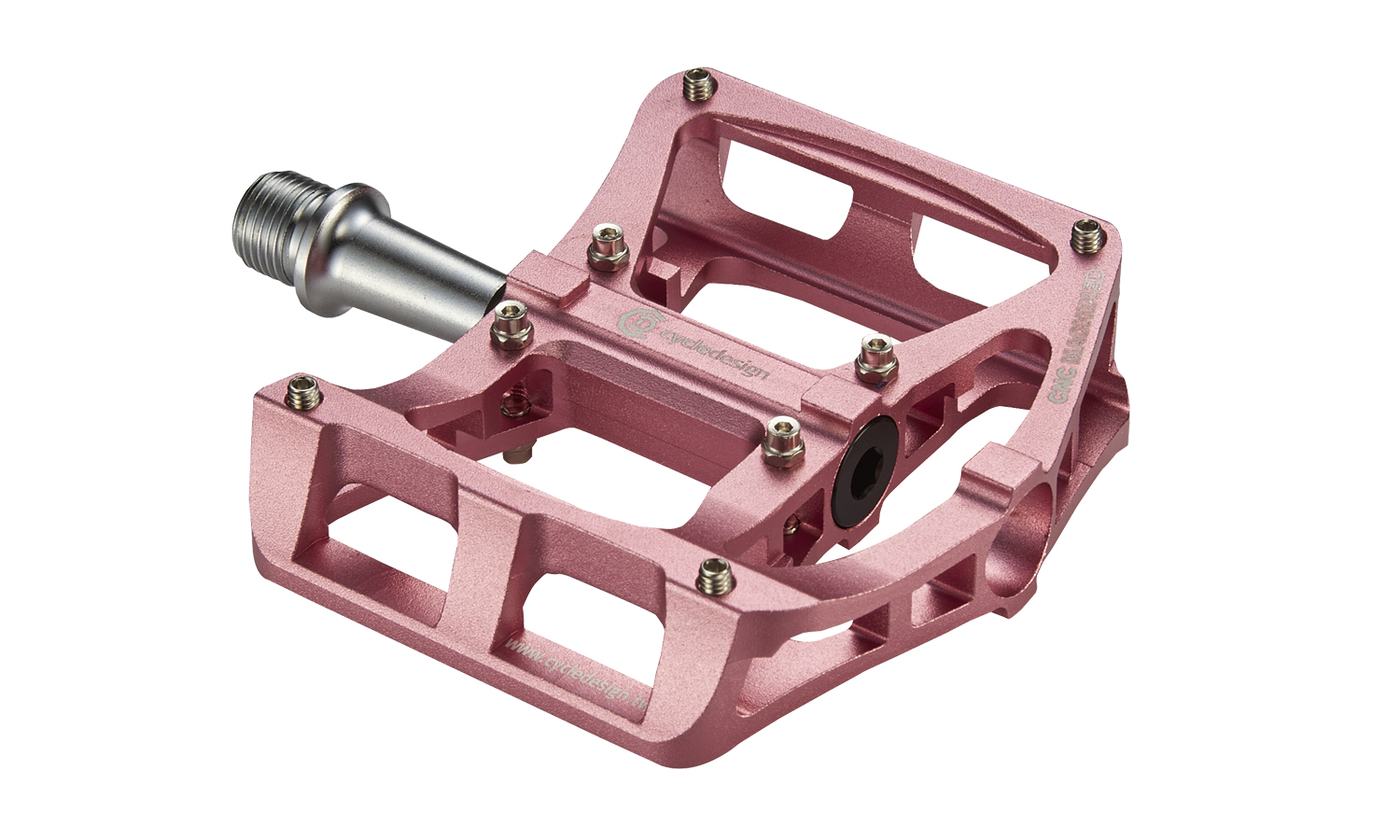

  • CDPD0019 - Pink
  • CDPP0014 - Black
  • CDPD0015 - Blue
  • CDPD0016 - Green
  • CDPD0017 - Red
  • CDPD0018 - Silver
  • CDPD0019 - Pink
The cycledesign BroadCell CNC. Pedal is made of CNC-Machined aluminum and Cr-Mo

axle, suitable for Mountain bike cycling.


Made out of perfect strength and lightweight aluminum material, bulit tough with eight

strategically grip pins and eight replaceable pins per sides which increases the excellent

grip between the pedal and the shoe, the anti-slip surface platform provides a secure

grip even in wet weather conditions.


The axle is CNC-Machined Cr-Mo cartridge, it provides reinforcement for the pedal to

keep up smoothly rotating, and it works with LSL sealed bearings system to elevate the

pedal durability and good lubrucation effect.





Material :


■ Body : CNC-Machined Aluminum 6061


■ Axle : CNC-Machined Cr-Mo steel


■ Cartridge Bearing : LSL Bushing + Sealed bearing


Stainless steel Replaceable Pins


Size : 103mm * 96 mm * 20.7mm


Weight : 298 g / set

Finish : Anodized color

Feature : Laser cycledesign logo

 CNC-Machined aluminum material provides excellent lightweight and perfect strength

 LSL Bushing Sealed Bearings to keep smoothly rotating and good lubrucation effect

 Bulid tough pins for excellent grip

 Low profile concave platforms design


Item :                Color :

CDPD0014          Black

CDPD0015          Blue

CDPD0016          Green

CDPD0017          Red

CDPD0018          Silver

CDPD0019          Pink
