AHEAD UpRise Device2. Stem-CDHS0023
  • CDHS0023
  • CDHS0023

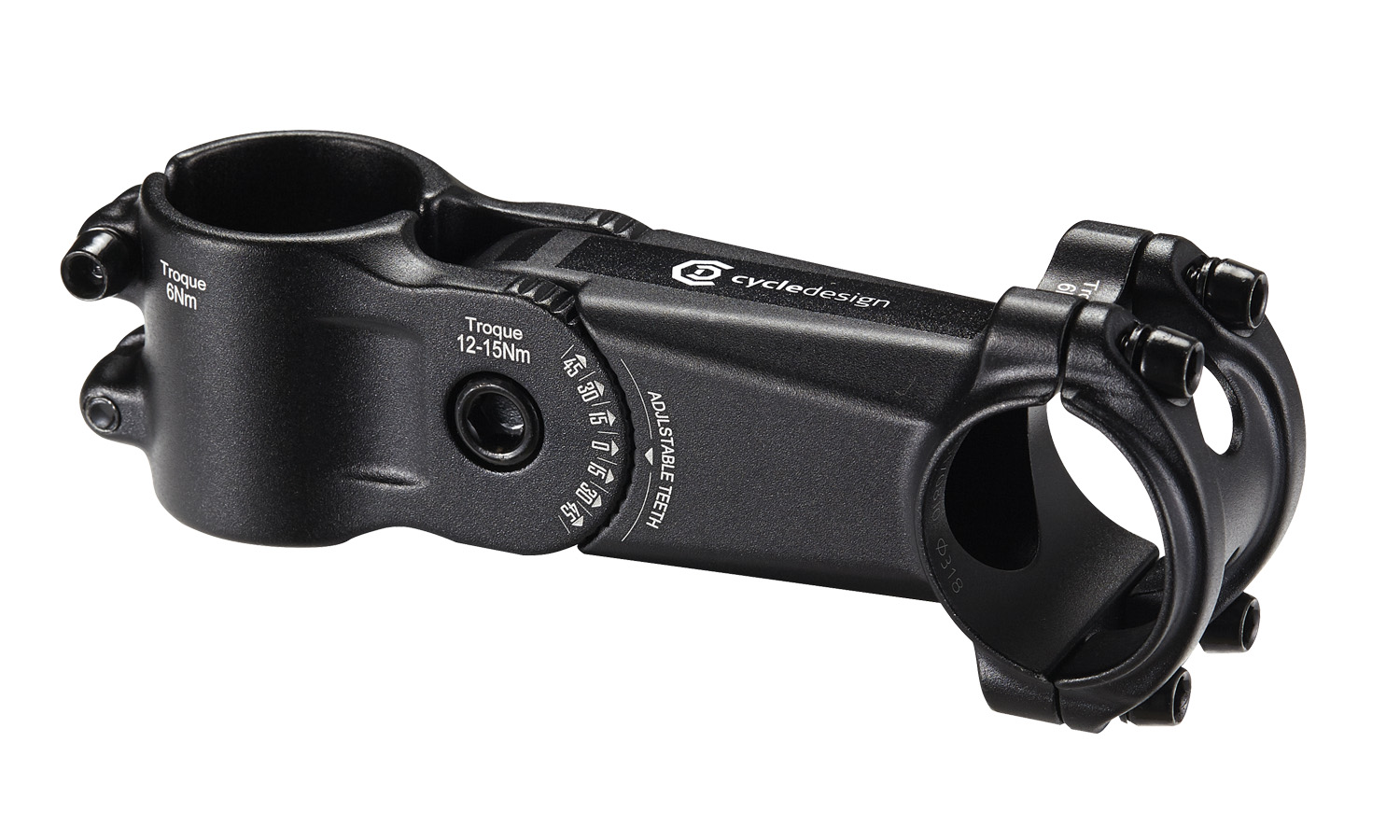

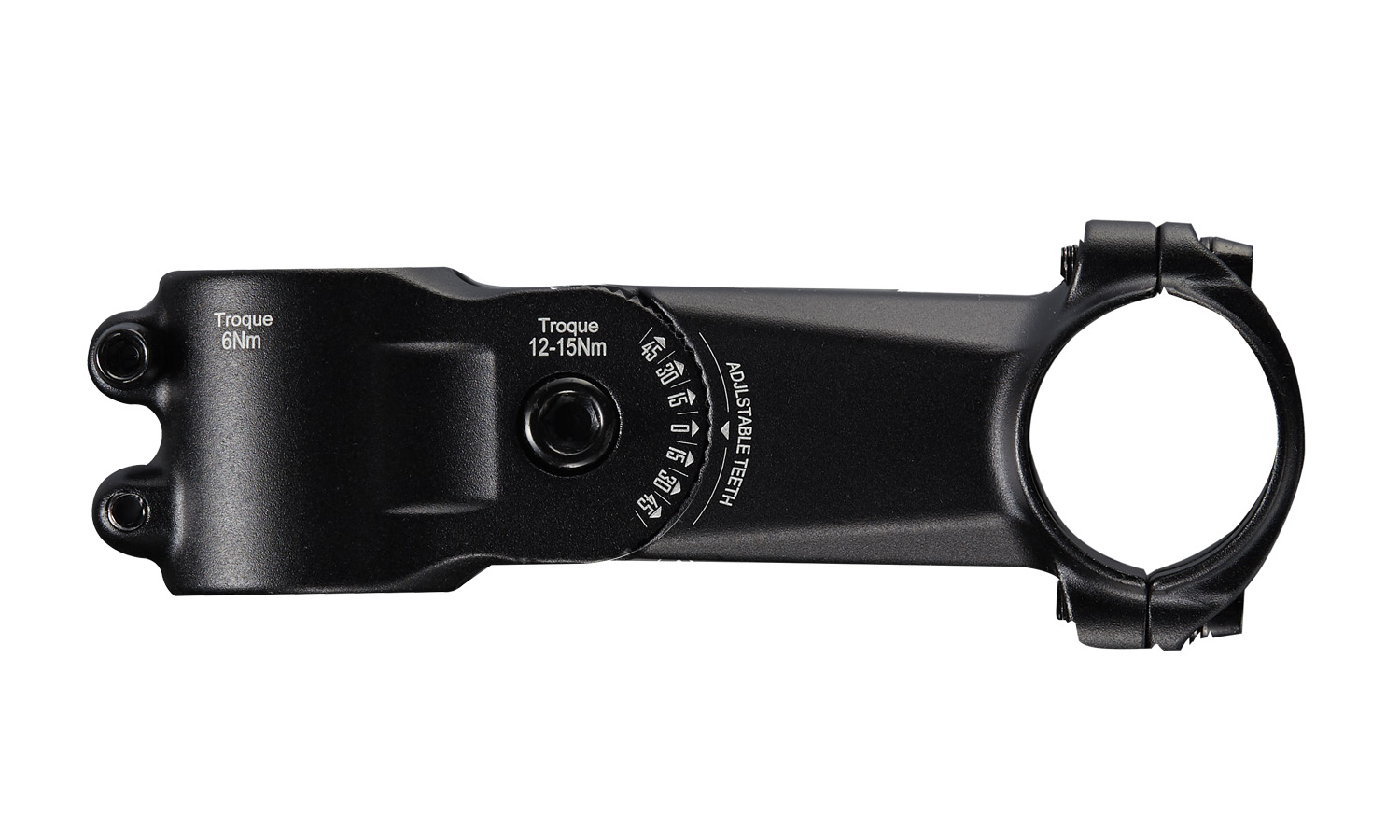

The cycledesign AHEAD UpRise Device.2 Stem is an 3D-forged aluminum adjustable

type, and by loosening lateral interconnected  with a precision spline shaft knuckle

broached, dial-in the angle and perfect height.


Easy installation and can slide the stem extension over the base, then insert the splined

shaft knuckly into the stem, making sure the slot of the splined shaft to align with the

slot of the base, this assures a smooth fit and that the lateral screw is srecurely installed

and properly seated.

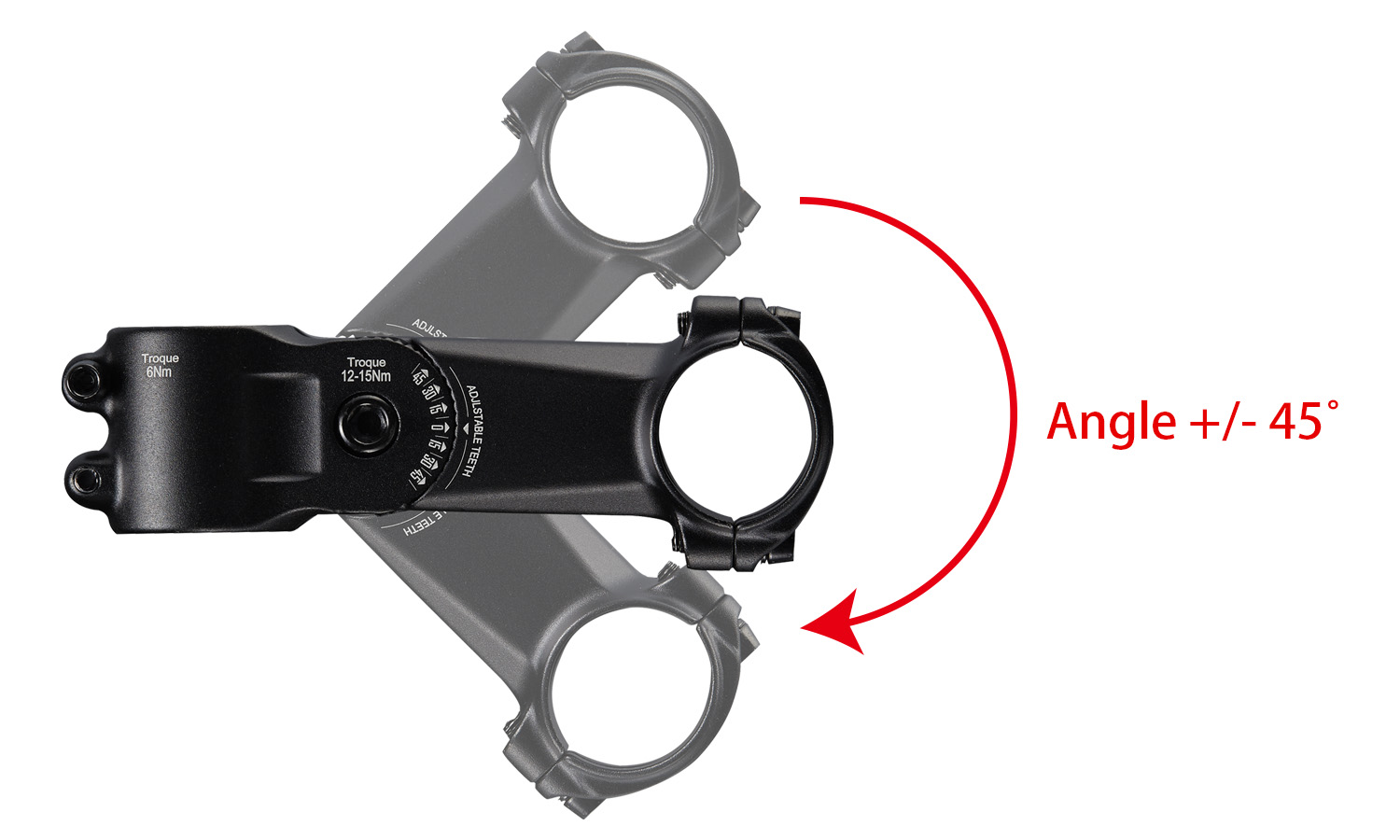

Its pivot range is from 45 degrees upwards to 45 degrees downwards for adapting

various terrains and riding positions.

The steerer height of stem has a 38mm heigh and needs to reserve a spacer to be fixed

into the threadless steerer tube and is mounted directly on the steerer tube.






Material : Aluminum 6061-T6

Fork Steerer Tube : 1-1/8"

Type : Threadless

Stem Angle : +/- 45°

BarBore Diameter : 31.8mm

Length : 100 mm

Weight : 210 g

Finish : SandBlasted Black

Feature : Laser cycledesign graphic

 Made of 3D-Forged aluminum structure is ultra-light to work sturdy and durable

 Precision mechined spline shaft knuckle is reliable and rugged

 Reforced component structure to offer handle operations

 Versatile range of adjustable angles suitable for adapting to various terrains and riding

    styles
