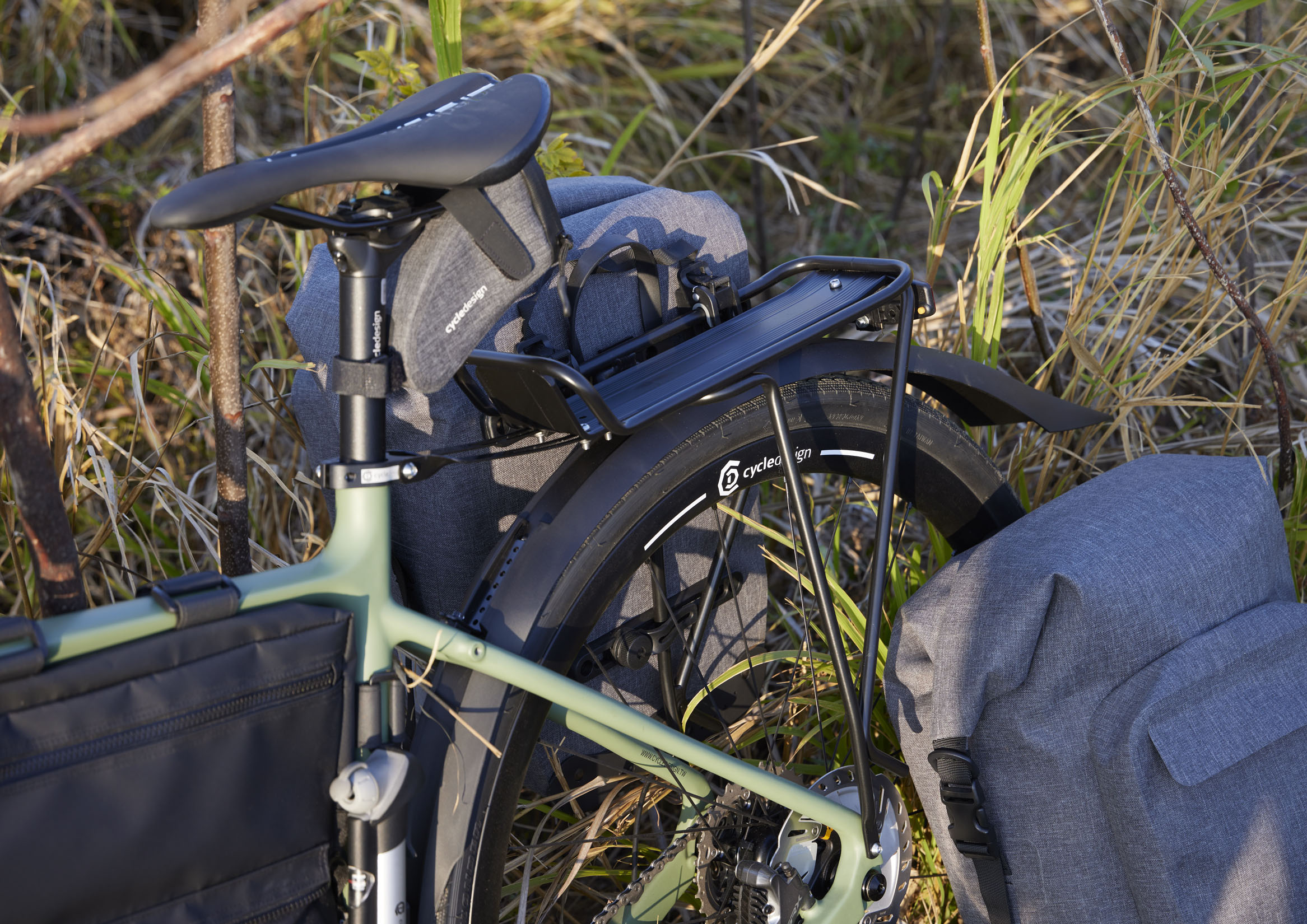

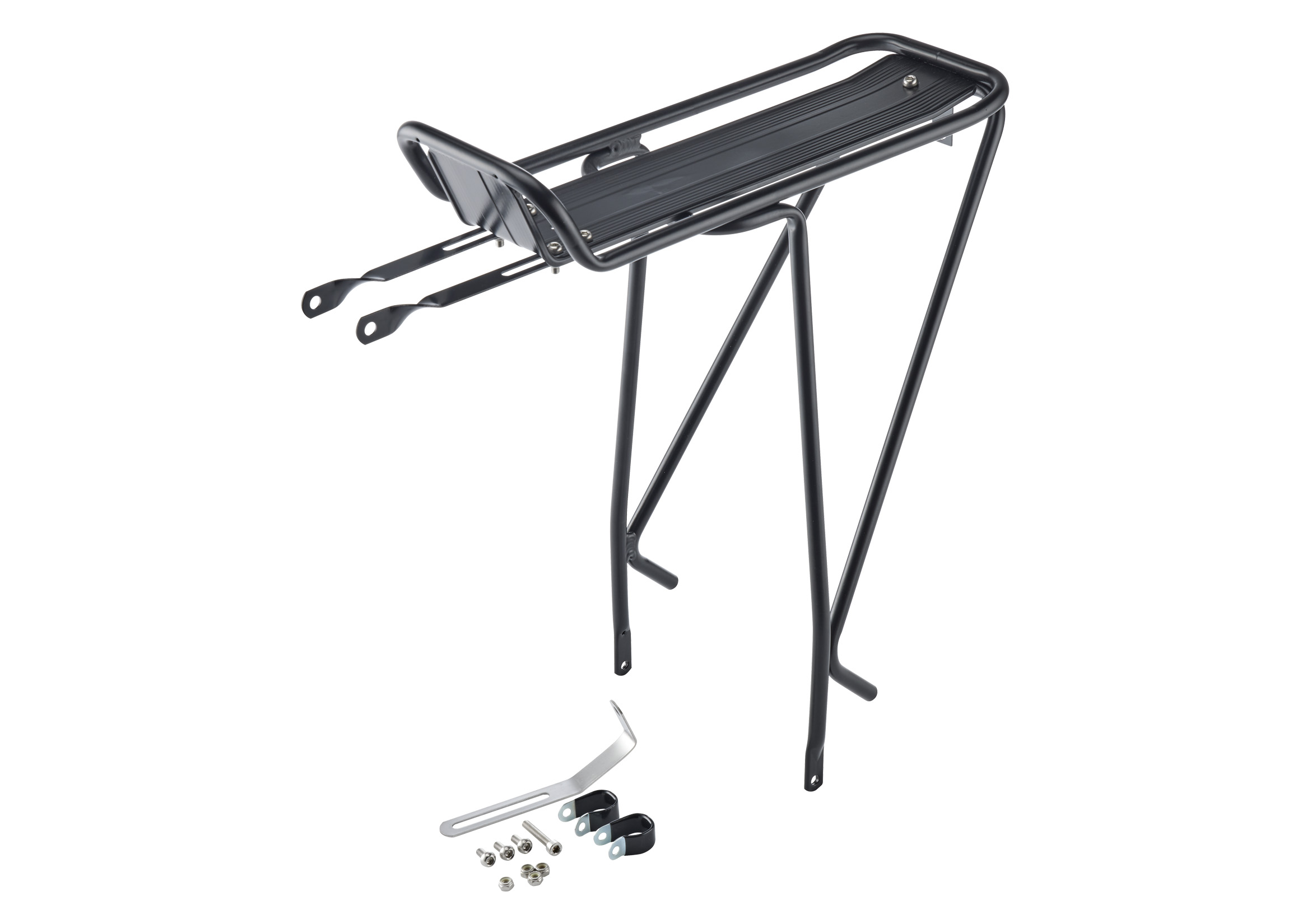

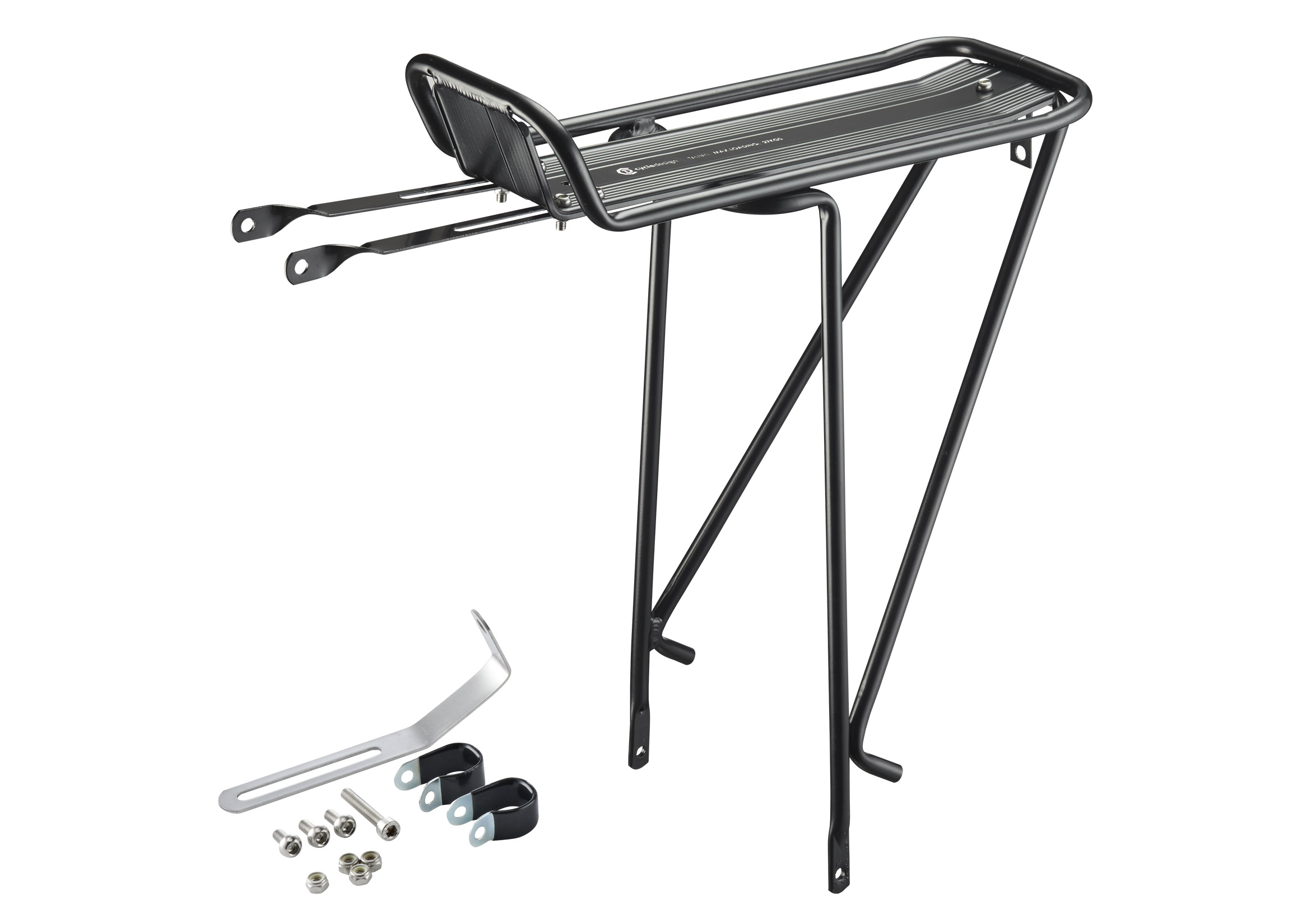

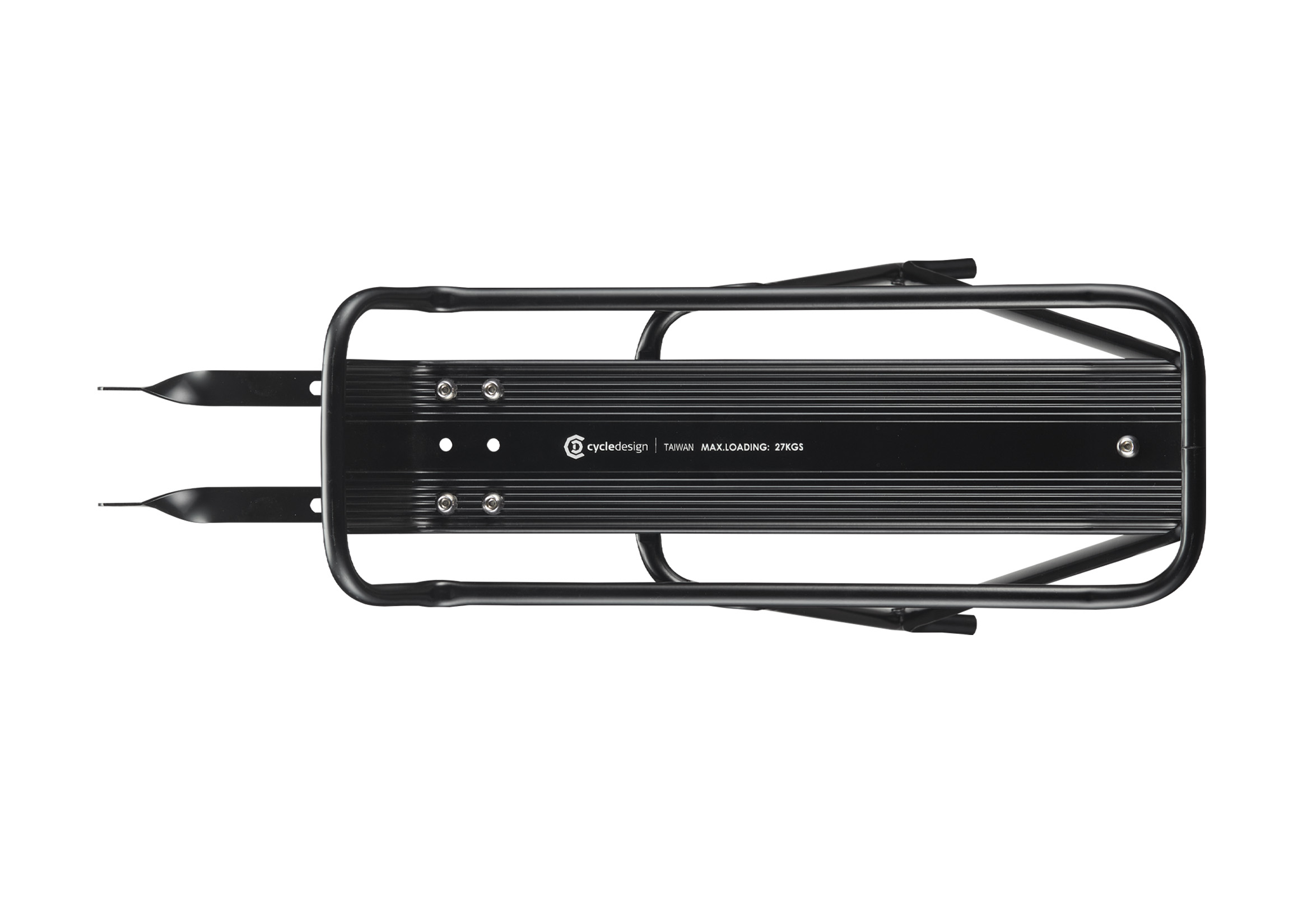

Rear Alloy Carrier-CDCR0020
Compatiaility with 29" Mountain bikes or 700C Gravel bikes and suitable for Disc brake

on the rear carrier rack use.


Constructed with durable aluminum 6061 T-6 material and lightweight tubular hollow

tube. Integral rack sturt shape design, Non-adjustable length type sturt can be attached

to the seat stay, it is only suitable for installation on 29" mountain bikes and 700C

Gravel bikes. It can be mounted with nearby hanger's carrier hole by tightening the

screws.


Welded by utilizing TIG technology to maintain stiffness and carry up to maximum

loading.

There are two mounting bracket attached, one set is installed to seat stay of top bolt

holes, anothet one allows to be fixed by using suitable to bridge fittings, and with a

reflective bracket mount for rear light.
Material : Hollow Aluminum 6061 T-6

Size : 420 * 360 * 170 mm

Weight : 530 g

Maximum Loading : 27 kg (60lbs)

Solid panel

Equipped : Stainless steel seatstay bracket & Bridge bracket / Steel tail light mount

Included hardware

Finish : Power coating black

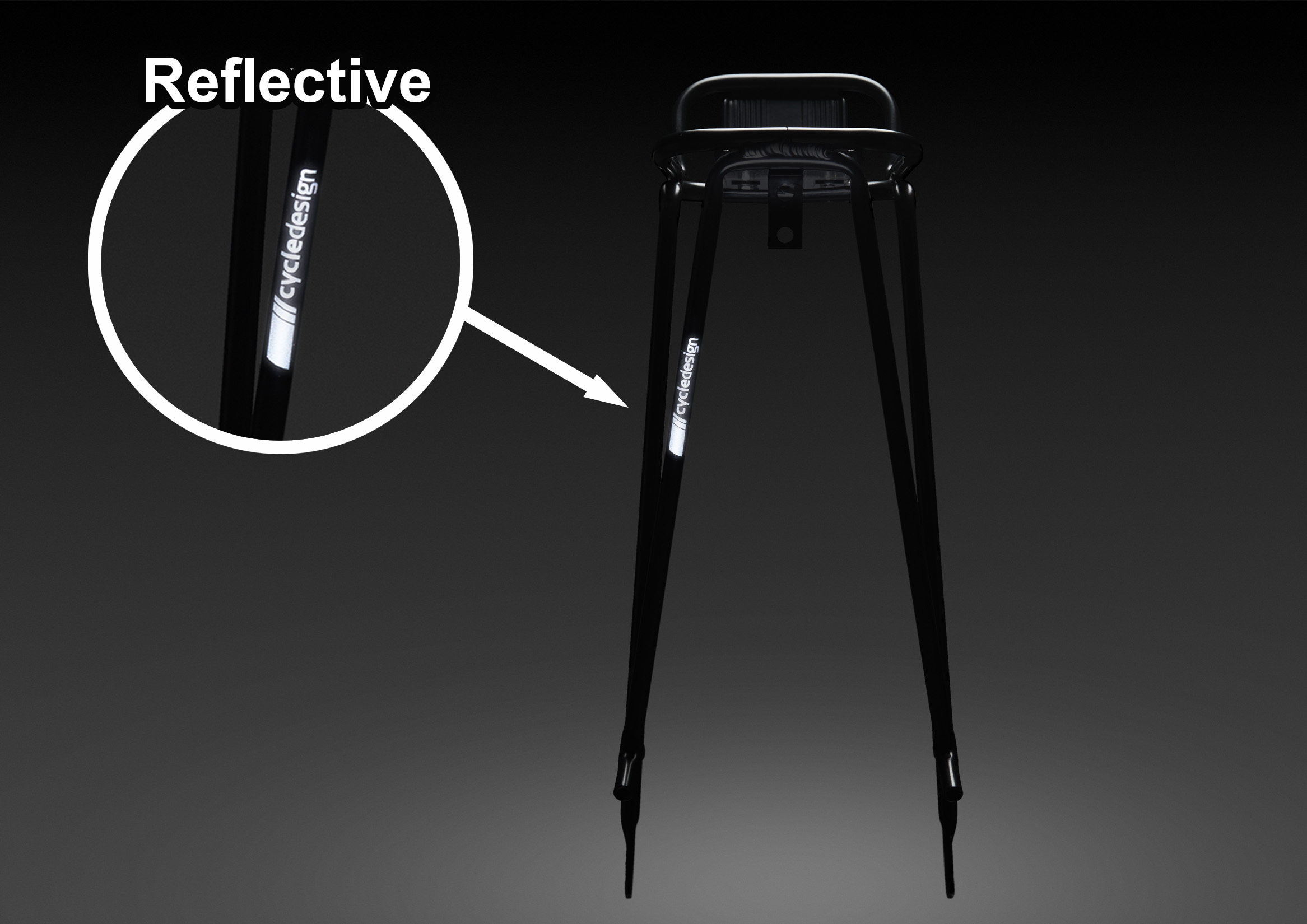

Feature : cycledesign reflective decal

 Lightweight tubular aluminum construction for loading up the panniers

 Integral TIG welded technology to maintain stiffness and tough to carry up to

   maximum loading

 The Non-ajustable strut structure in height with integral metal machinery

    construction to fix seatstay bolts tightly and keep the load solid and sturdy

 Equipped with rear reflective mounting bracket
