Index / product / Lights / Front Light
SmallCan LM-80.-CDLT0009 / CDLT0010
  • CDLT0009
  • CDLT0010

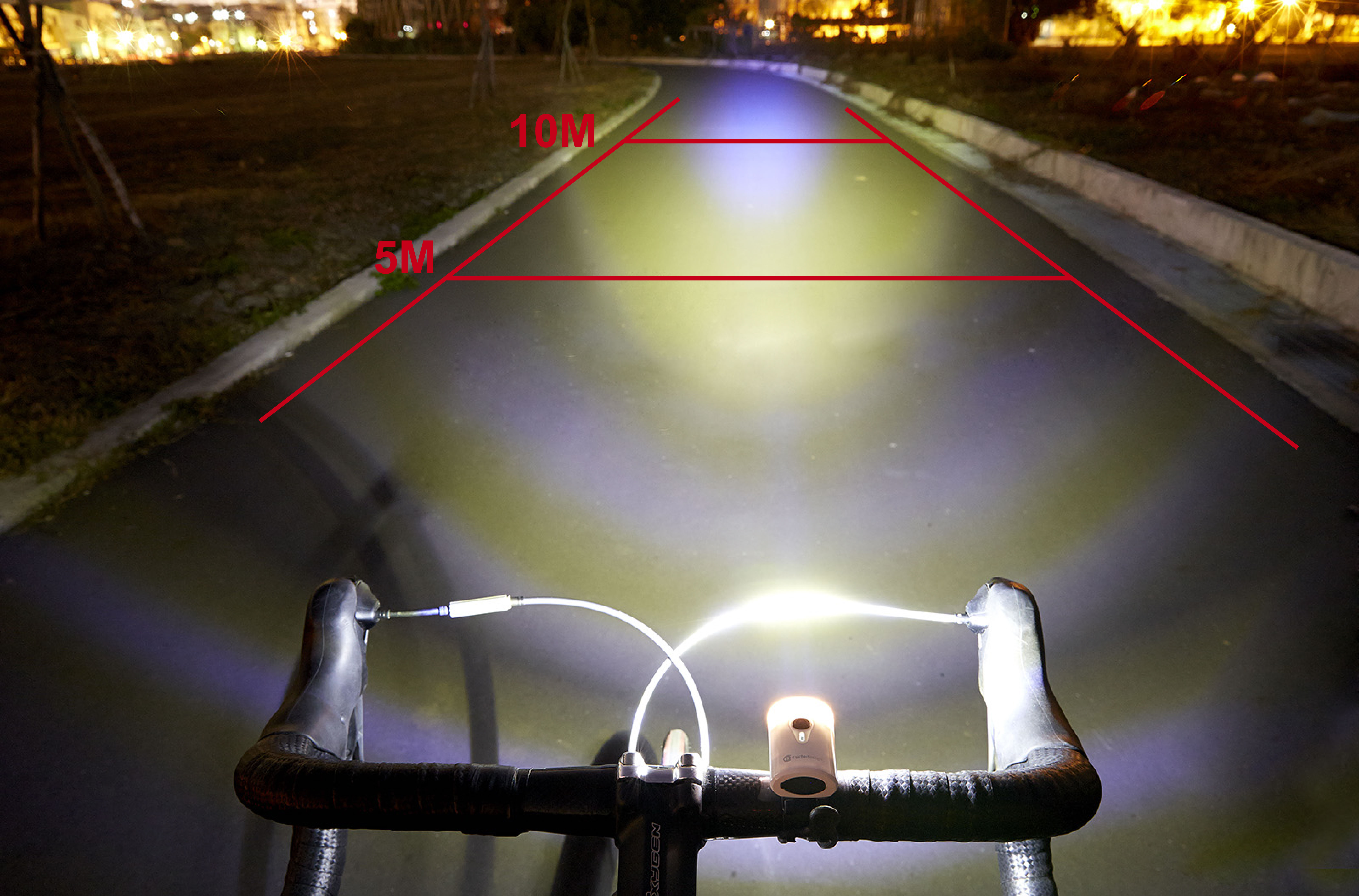

  • View, super bright LED to provide at 10 meters
  • CDLT0009
  • CDLT0010
  • View, super bright LED to provide at 10 meters
The cycledesign SmallCan LM-80. is a mini size and ultra-lightweight, the lamp bulb is

with great value lighting brightness of 80 lumens, and versatile mode menory function

of Four-mode beam with high power LEDs front output and optical enhancements also

inscrease side visibility.


Designed for compact size and the entire case adopts a certified waterproof IPX4 level

performance, with multiple lighting for max throw lighting enhancement and optical

increasing visibility for safe riding, built in 500mAh rechargeable by Micro-USB cable

interface input high-current recharging capability ensuring longer runtime and reliable

performance.


Multi-Purpose headlight modes options designed for brightness, three constant lighting

modes and one flashing mode alert drivers to your presence,
when the battery capacity

is less than 10%, the low battery reminder will show the light indicator.

(Constant mode : Red flashes cyclically / Flashing mode : Red constant lighting )

In addition, it except benefits from various mode functions, it also has a memory mode

design, when you turn the light on, it lights up in the last lighting mode you used.
Material : Plastic


Max Brightness : 80 Lumens

Battery Type : Lithium Ion 500 mAh (Rechargeable)

Charge Time : 3 hrs by Micro-USB (DC5V / 0.5A)

Bulb : SMD LED * 2 pc


Light Modes / Lumens : High Beam / 80 lm    Mid Beam / 40 lm

Max RunTime :              2 hrs                        4 hrs

         1.5 sec.           Flashing / 80 lm       Low Beam / 20 lm
 OFF                      18 hrs                     7 hrs



Included Micro-USB Cable *1 pc

Strap bracket : Handlebar mount
ø19mm ~ ø32mm

Size : 48 * 28 * 21 mm

Weight : 19.2 g

Certifed Waterproof IPX4

Memory Mode Function

Feature : cycledesign logo / Made In Taiwan

 High-intensity 2 SMD white LEDs bulb lighting brightness of 80 lumens, up to 100

    meters illuminating

 Very compact size and durable, high capacity for high beam up to 2 hrs of continuous

    use, the first choice for daily commuting

 High power charging with overcharging prevention, low battery inicator and

    automatic power saving

 Lightweight and easy for protability, equipped with strap bracket for quick installation

    and compatible multiple bracket system using


Item :               Color :

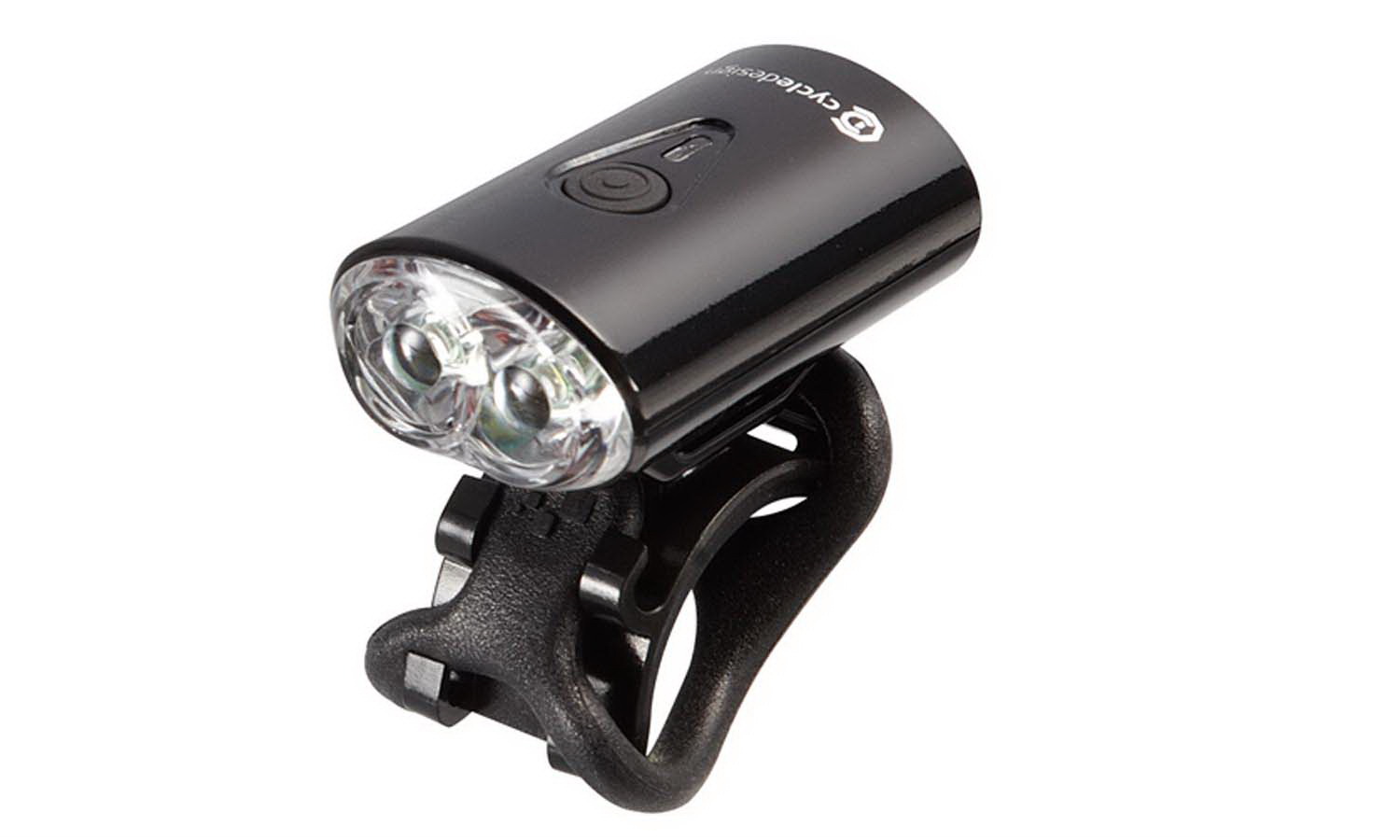

CDLT0009          Black

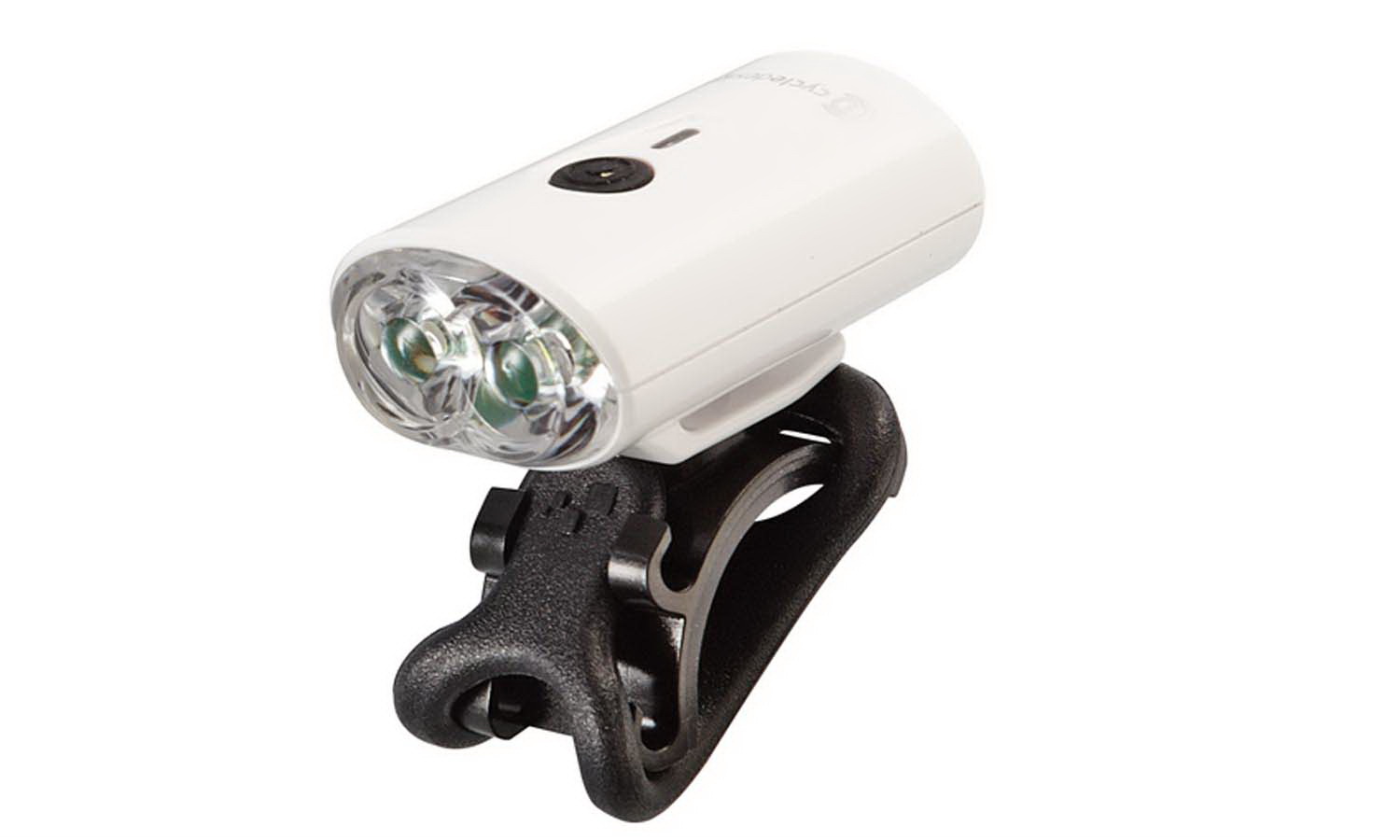

CDLT0010          White
