Mini Pump Extract-Hose Dapper5.-CDPP0007 / CDPP0008 / CDPP0009 / CDPP0010 / CDPP0011 / CDPP0012
  • Anodized color option
  • Two-Chamber telescope principle
  • Anodized color option
  • Two-Chamber telescope principle
Telescope hybrid CNC-Machined mini hand pump maximum capacity of 120 psi.


Mode of 6061 aluminum High-Quality material and anodized furface antiozidation

treatment, telescope hybrid CNC-Machined aluminum precise parts with flexible hose,

the hose is hidden inner aluminum barrel, Ultra-Compact size for easy carrying.

That's plastic hase and Two-Chamber telescope principle comprised, capable of inflate

the tire to maximunm air capacty and faster inflation filling.


Converted to Schrader valve - Plastic hase a CNC-Machined aluminum pin inside and

can be installed to head valve connectors with pin mounted on the screws ensure a

secure fix as well.


Practical - Included extra bicycle bracket can be installed to frame with mounts buckle

under the bottle cage.




Barrel : CNC-Machined Aluminum 6061

Shaft : CNC-Machined Aluminum 6061

Valve Cap : CNC-Machined Aluminum 6061


Valve available for Presta or use the extra CNC-Machined aluminum pin for Schrader

Included : Extra extension hose / Bracket / Pin

Size Length : 12 cm

Hose Length : 6 cm

Max. Pressure :120 psi /  8 bar

Weight : 85 g


Feature : cycledesign logo / Made In Taiwan

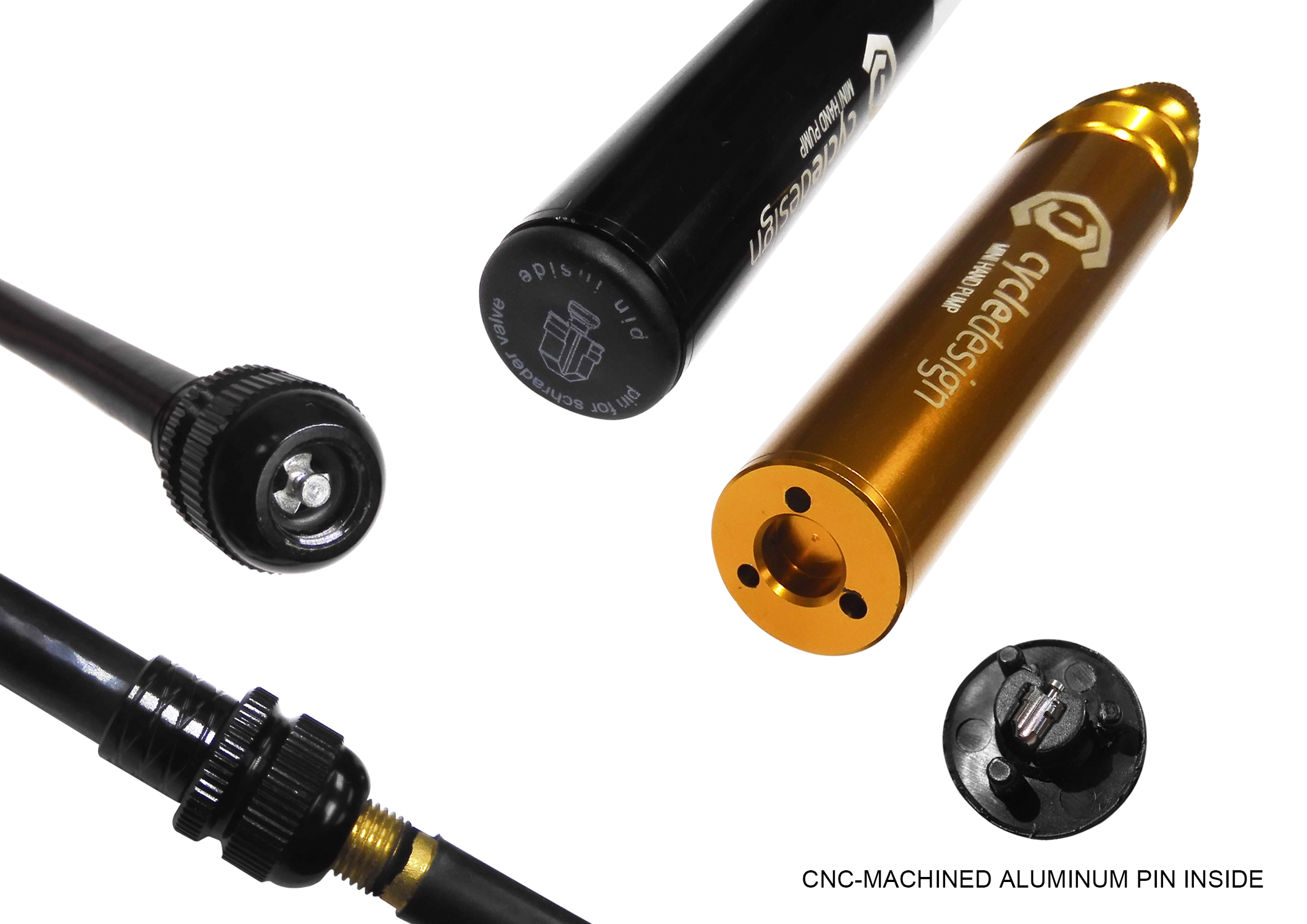

 CNC-Machined aluminum barrel and handle, equipped with a pin for Schrader valve


 Extendable hose easies threads into the head for a snug fit

 Lightweight aluminum metallic material, easy to operate when inflating


 Included extras bicycle bracket mount

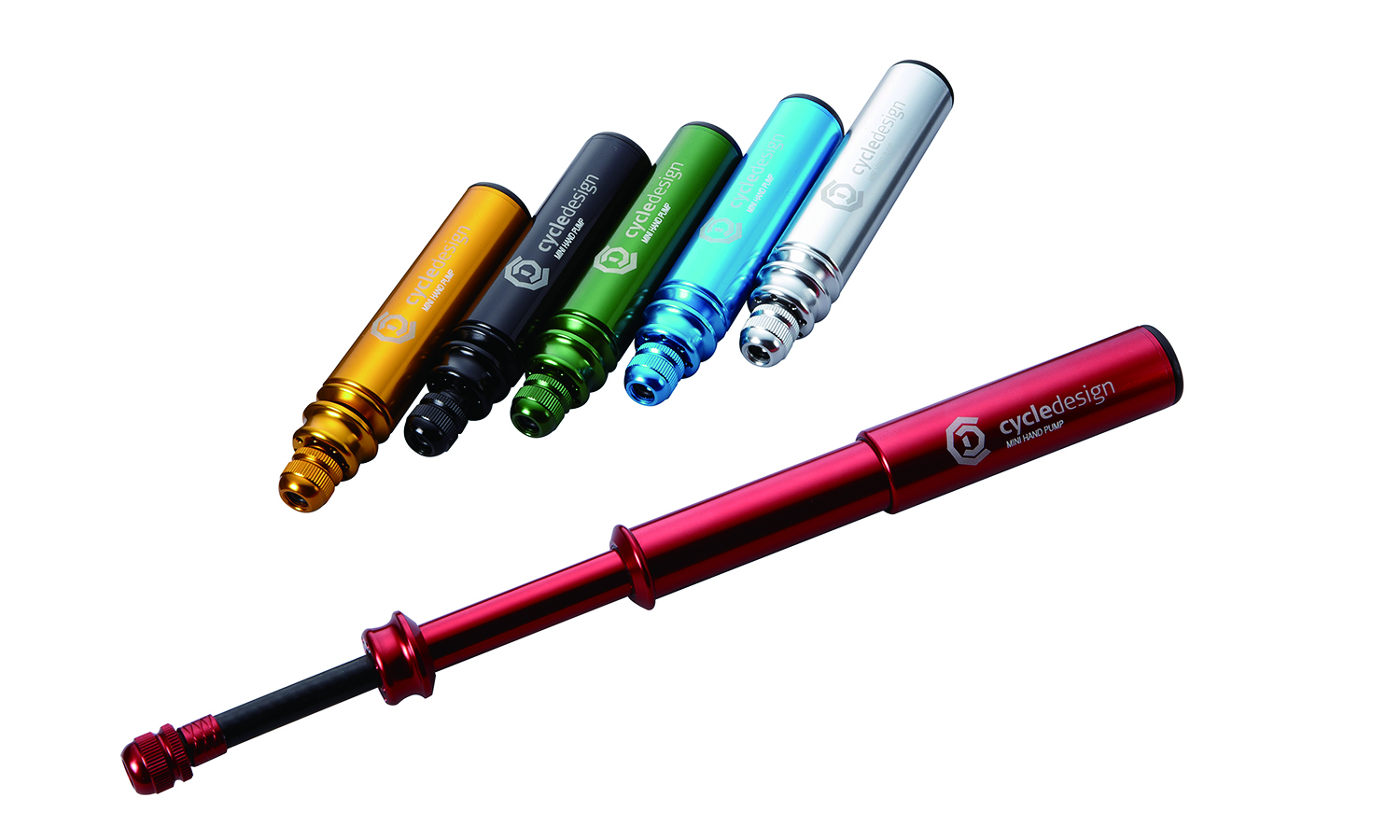

Item :               Color :


CDPP0007          Black


CDPP0008          Green


CDPP0009          Red


CDPP0010          Gold


CDPP0011          Blue


CDPP0012          Silver
