Roller Comp Cable-Lock-CDLK0001 / CDLK0003 / CDLK0004
  • CDLK0001 - ø8mm / 1200mm (48") Length
  • CDLK0003 - ø10mm / 900mm (36") Length
  • CDLK0004 - ø8mm / 900mm (36") Length
  • CDLK0001 - ø8mm / 1200mm (48") Length
  • CDLK0003 - ø10mm / 900mm (36") Length
  • CDLK0004 - ø8mm / 900mm (36") Length
The cycledesign Roller Comp Cable-Lock is a 4-digit dial mechanism with integrated

coiling cable long enough to provide more strength and flexibility for wide application.


High-security 4-digit dial password numerical lock mechanism and nearly 10,000

possible combinations of master password for configuration codes.

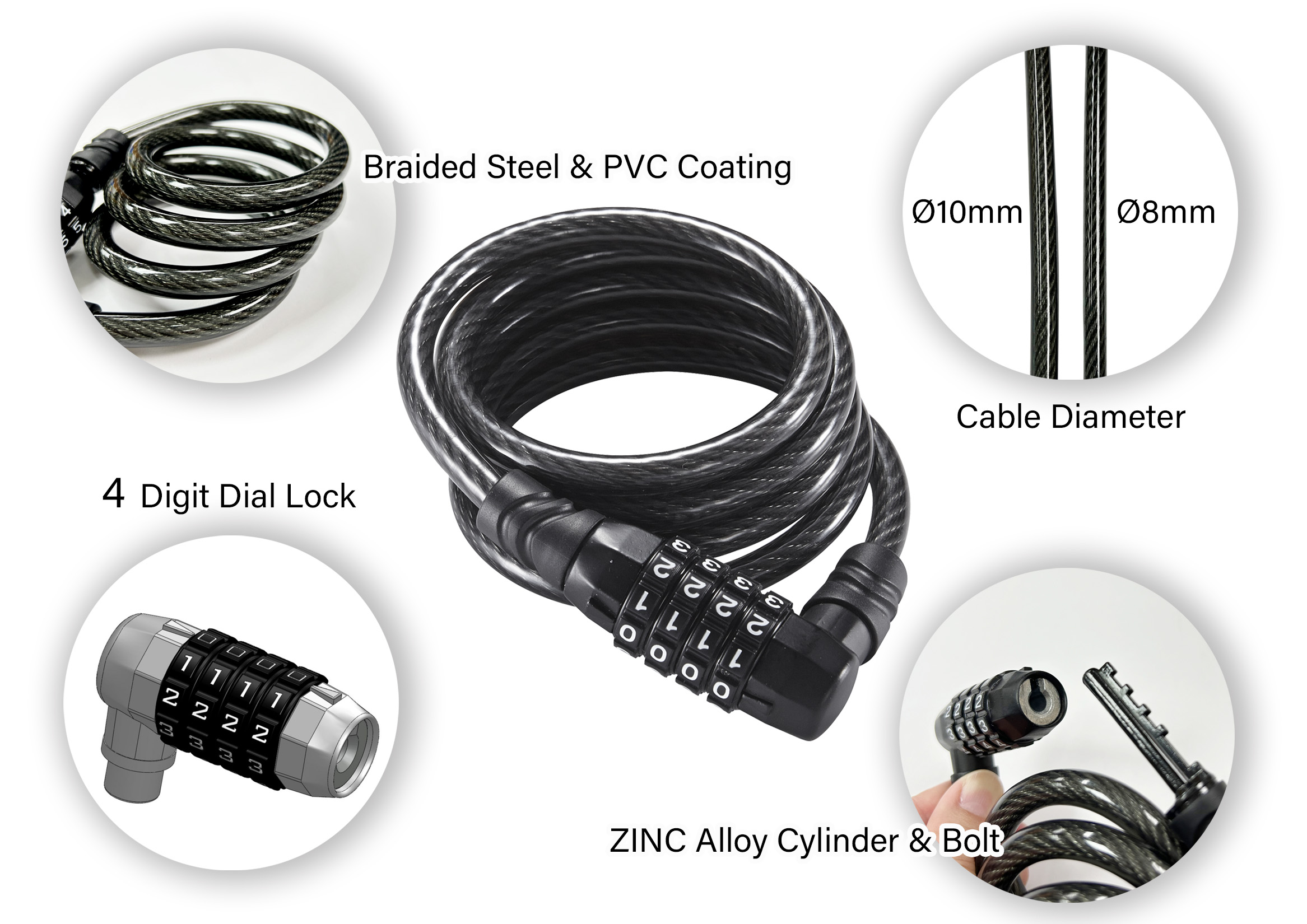

The ZINC alloy cylinder and bolt are rustproof and waterproof design with extremely

strong wire braided construction and PVC coating, it's not easily to be damaged,

it provides more durable wear.


Precision structural design with two of cable diameter sizes and lengths for choise,

equipped with high-quality materials and with coiling cable long enough to cross several

bikes use.

A exclusive head mechanism component moulded and passwords combination digit dail

are all meticulously crafted by Taiwanese craftsmen.

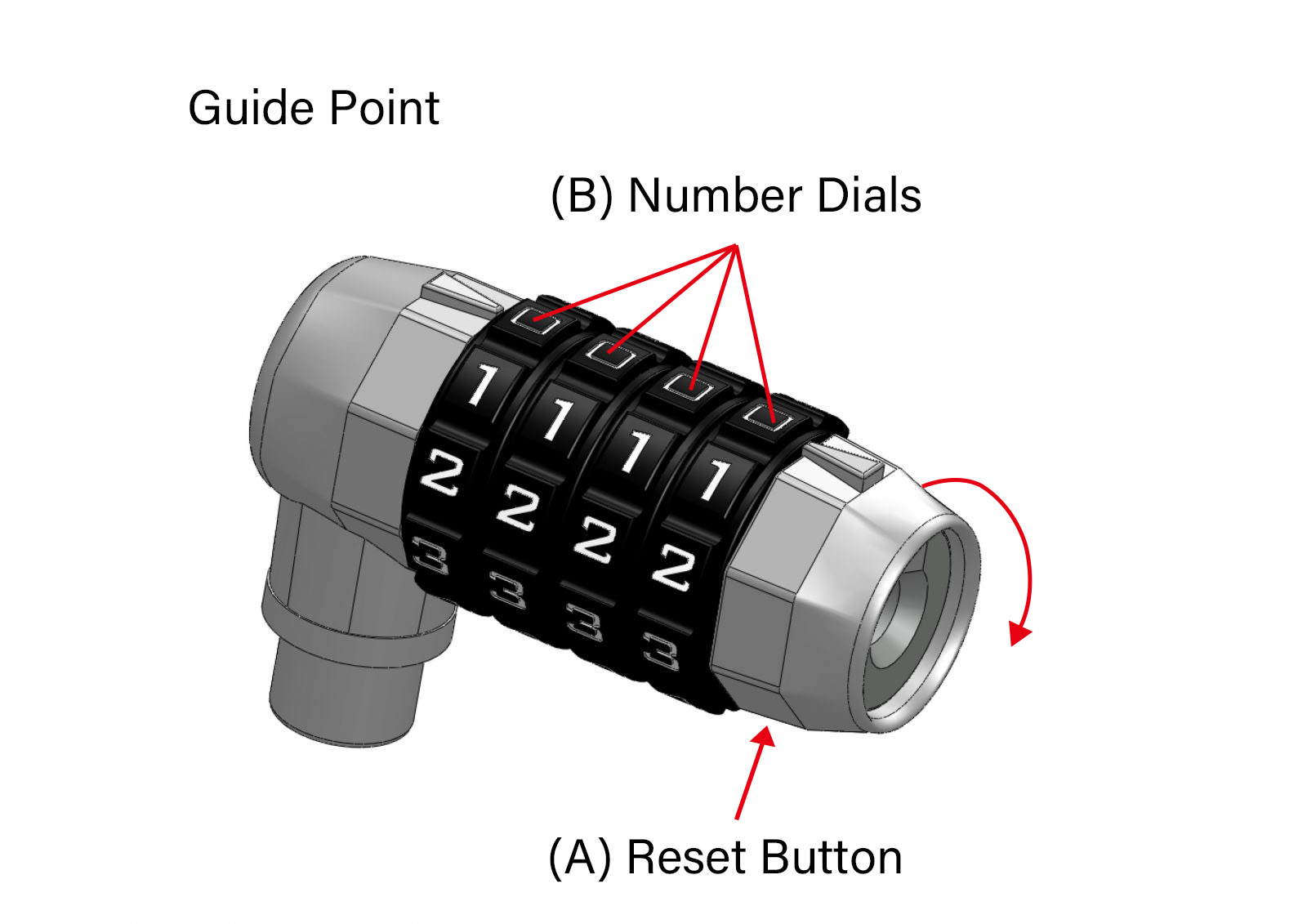

How it works to setup and rechange the number code :


Inital number is " 0000 "

1. Turn the reset button 90° position.

2. Select your favorite number.

    Integrated the combination, rotate the ring on the hand side in a counterclockwise

    direction untill the notch is in a 90° position.

3. To make sure that the combination you have set correct, please insert the other end

    of the lock into the right hand side of password lock in the direction of the arrow.

4. Turn the number dials randomly to fasten the lock.








Material : ZINC Alloy / Steel / Plastic

4-digit dial

Number resettable

Feature : cycledesign logo / Made In Taiwan

 4-combination numerical changeable passwords and easily set and reset your own

    personalized passwords

 ZINC alloy culinder and bot are rustproof and waterproof

 Braided steel wire and PVC coating to provide more durable wear

 Coiling cable long enough to cross several bikes use



Item :                Cable Size :                                    Weight :

CDLK0001          ø8mm / 1200mm (48") Length          255 g

CDLK0003          ø10mm / 900mm (36") Length          225 g

CDLK0004          ø8mm / 900mm (36") Length            215 g
