Tour-Guard Thin W45. Fender Set-CDMG0005 / CDMG0006 / CDMG0007
-
CDMG0005-24
-
Safety QR fatener, for ø3.2 / ø4 mm fender - stay
-
You can find the table to satisfy your needs.
-
CDMG0005-24
-
Safety QR fatener, for ø3.2 / ø4 mm fender - stay
-
You can find the table to satisfy your needs.

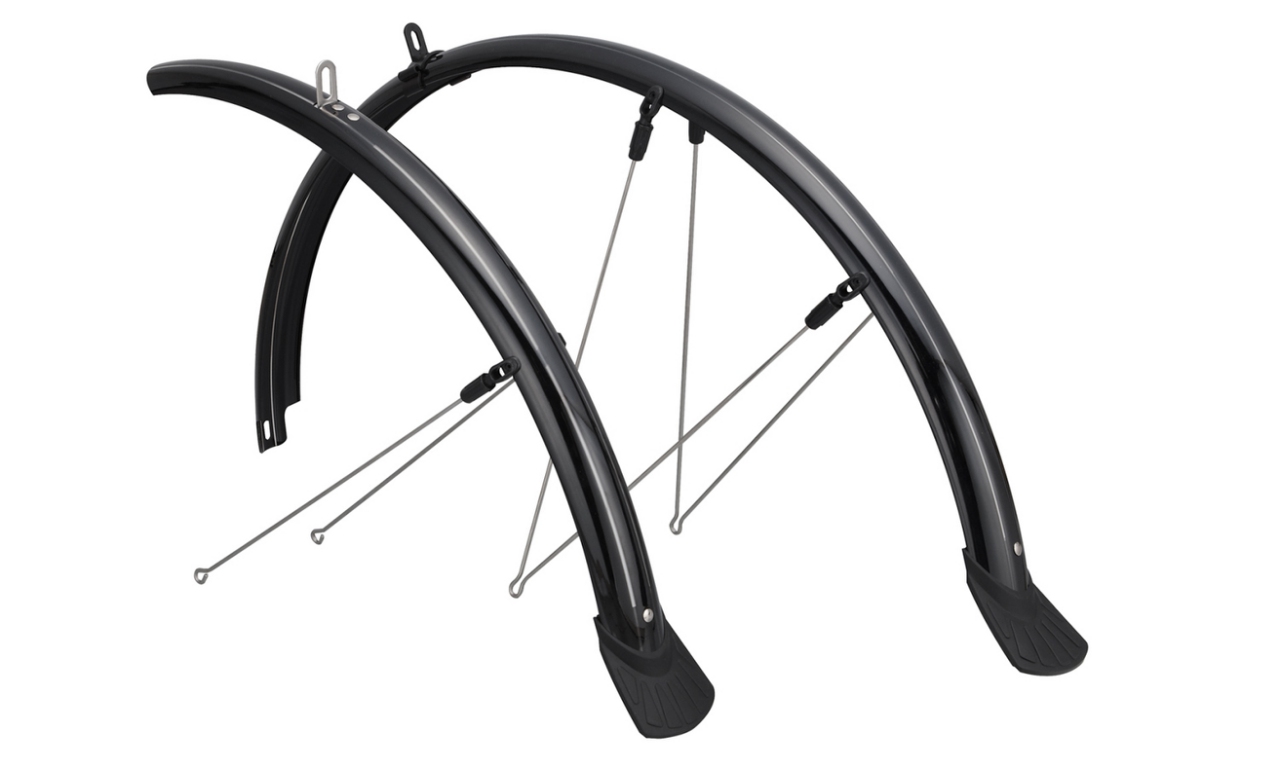

The cycledesign Tour-Guage Thin W45. Fender Set is a full coverage and
width-enhancing curved shape profile and an extra added fender tail in a shoulder
appearance.
width-enhancing curved shape profile and an extra added fender tail in a shoulder
appearance.
In order to satisfy City bike's tires and cover a range suitable for wheel sizes, the
cycledesign Thin W45. model is a more wider shape with tail in a shoulder to prevent
the rider from being sprayed behind by rainwater, while the enjoying cycling in wet
weather conditions.
cycledesign Thin W45. model is a more wider shape with tail in a shoulder to prevent
the rider from being sprayed behind by rainwater, while the enjoying cycling in wet
weather conditions.
It can suitable fit and cover tire widths up to 45mm used, and with a maximum size of
700c x 35c of City bike.
700c x 35c of City bike.

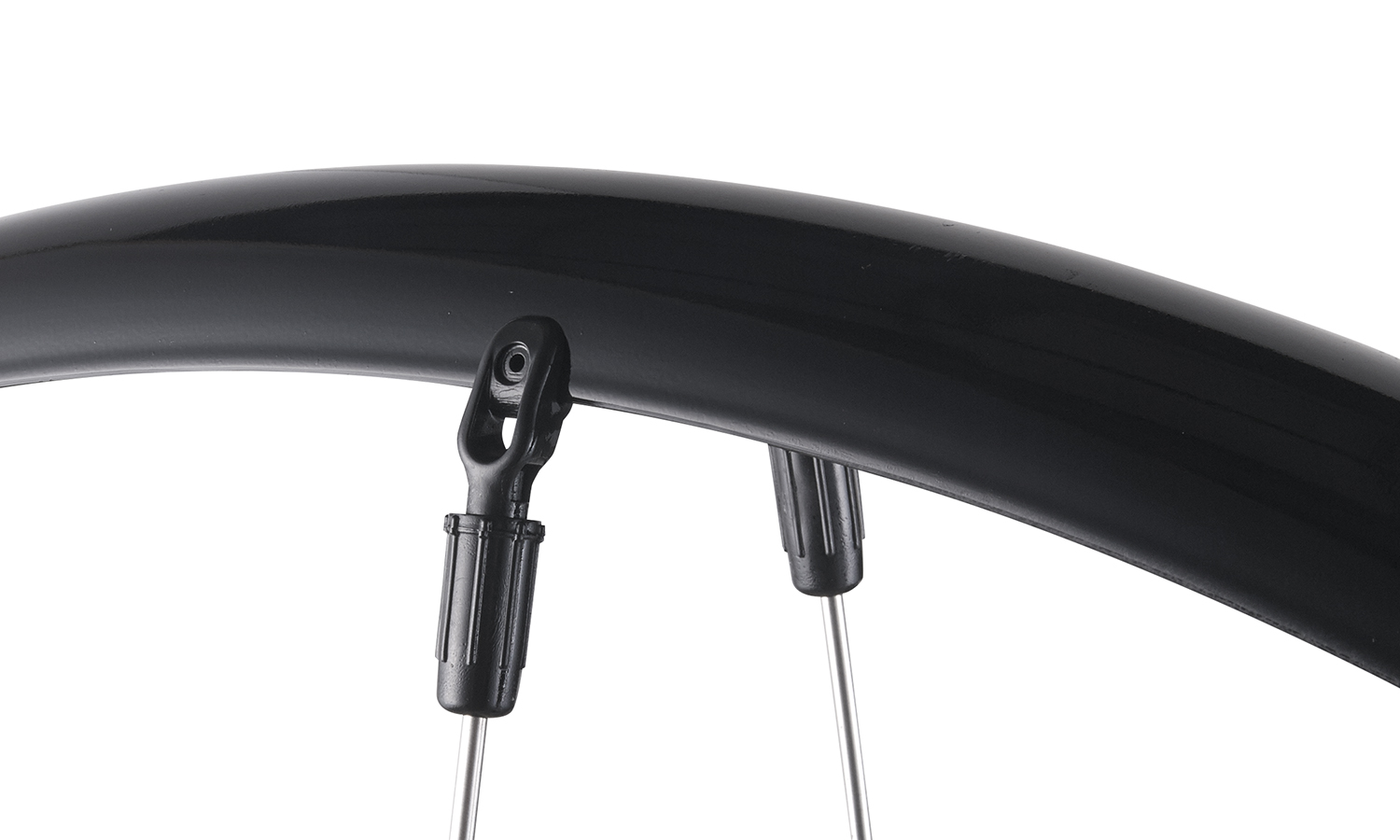

Equipped with a Fix-In hanger and stainless steel fender struts and with grommet
Safety POP-OFF3 Quick-Release applicable to quick adjust length, it can fit the gap
perfect between tire and mudguard.
Safety POP-OFF3 Quick-Release applicable to quick adjust length, it can fit the gap
perfect between tire and mudguard.
It's made from lightweight thermoplastic material and more simple installation.
All the metal hardware is stainless steel finished material for durability and anti-rust.
Front mudguard, equipped with the immobile FixIn hanger and stainless steel struts
hardware included, it's fastened into fork's hole and the fender struts are installed on
fork's eyes.
hardware included, it's fastened into fork's hole and the fender struts are installed on
fork's eyes.

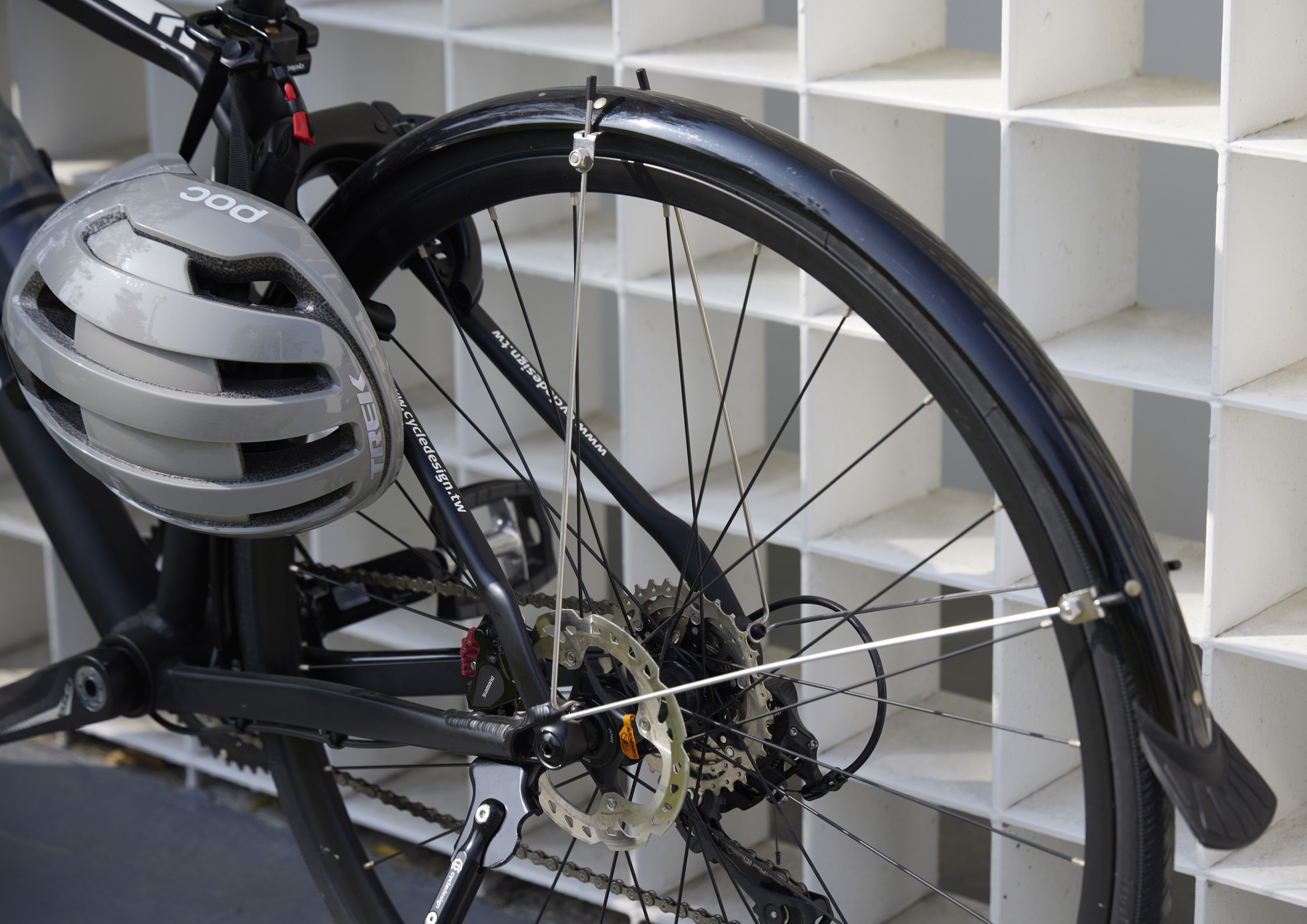

Rear mudguard, attached the removable hanger connector shoulder to be installed in
the bridge, and stainless steel struts hardware included, it's fastened and mounted into
bridge, and the fender struts are installed on the seatsatys of frame.
the bridge, and stainless steel struts hardware included, it's fastened and mounted into
bridge, and the fender struts are installed on the seatsatys of frame.
Material : PC / Aluminum / Stainless steel
Suitable For Tire Widths : Maximum 1.125" ~ 1.375" / 28c ~ 35c
Mudguard Width : 45 mm
Included stainless steel bolt metal hardware / Fender tail
Stainless steel fender struts / Safety POP-OFF3 system
FixIn hanger in front / SlideIn hanger in rear
Suitable For Tire Widths : Maximum 1.125" ~ 1.375" / 28c ~ 35c
Mudguard Width : 45 mm
Included stainless steel bolt metal hardware / Fender tail
Stainless steel fender struts / Safety POP-OFF3 system
FixIn hanger in front / SlideIn hanger in rear
Color : Black
Feature : cycledesign logo / Made In Taiwan
.png)
More wider curved shape profile with tail in a shoulder designed
Stainless steel fender struts combined with Safety POP-OFF3 system for adjustablelength

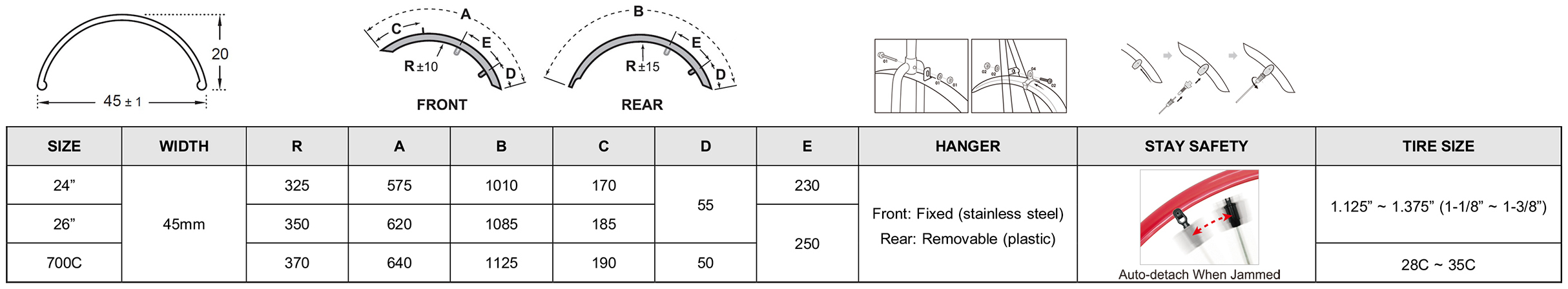

FixIn / SlideIn hanger fasteners to be fixed in front fork's hole and bridge of frame All metal hardware is stainless steel material finish for durability and anti-rust Item : Wheel Size : Length Fender Size :
CDMG0005 24" Bike F : 575 mm / R : 1010 mm
CDMG0006 26" Bike F : 620 mm / R : 1085 mm
CDMG0007 700C F : 640 mm / R : 1125 mm
