Easy-Guard SlideIn M52. Fender Set-CDMG0012
  • CDMG0012
  • C clip have adjustable 25mm length for snap-fit seat tube fitting
  • CDMG0012
  • C clip have adjustable 25mm length for snap-fit seat tube fitting

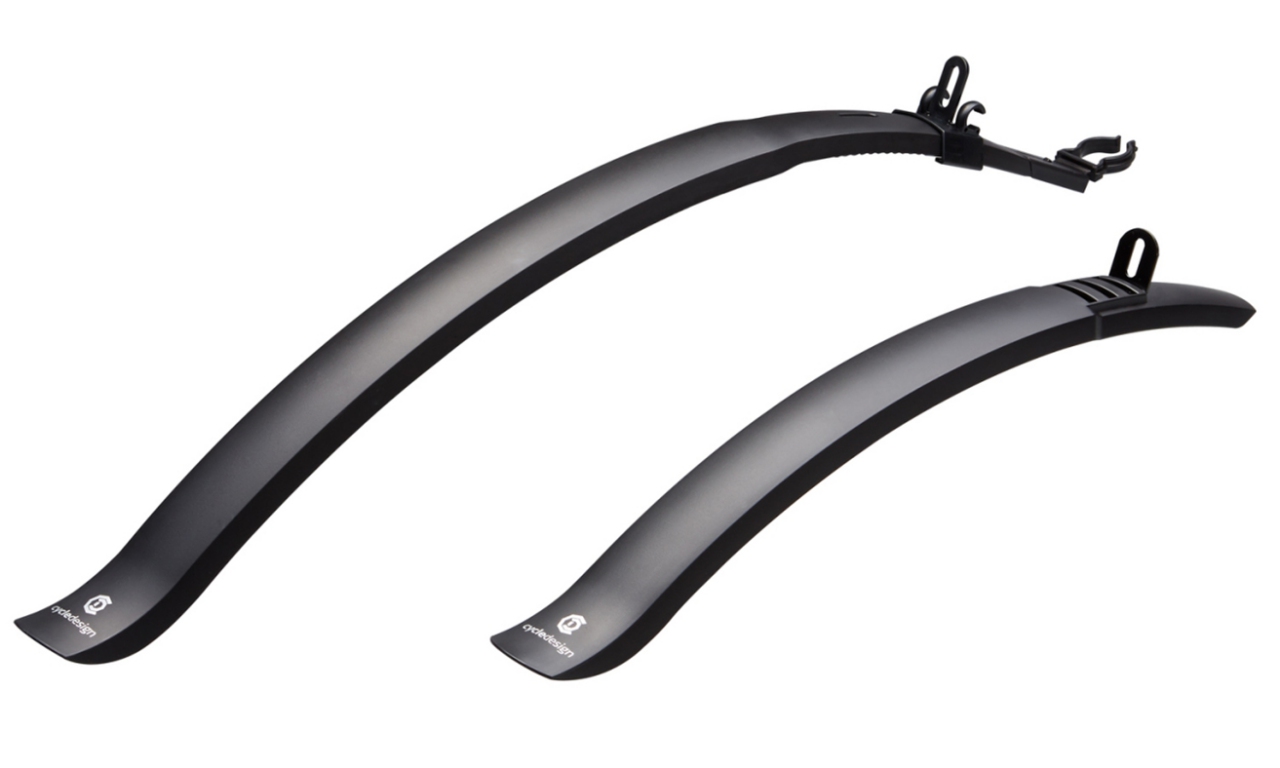

The cycledesign Easy-Guage SlideIn M52. Fender Set is a longer and slimmer profile

designed, a universal model for City bikes fits and covers tire widths up to 52mm / 38c

used, and equipped with fittings of SlideIn fixed hanger system.


In order to satisfy cover Trekking or Commuter's bikes with 28" wheel and cycling in

wet weather conditions, and to effectively prevent the rider from being sprayed behind

by rainwater, the cycledesign SlideIn52. Fender Set is suitable for tires with a maximum

size of 38c.

It is designed with longer shoulders in a U-shape profile can achievev full-coverage

protection for City bike wheels, and the rear mudguard has a little wraped tail that's to

keep dry and clean, and the universal C-clip fastener with Snap-on of slide-fit hanger

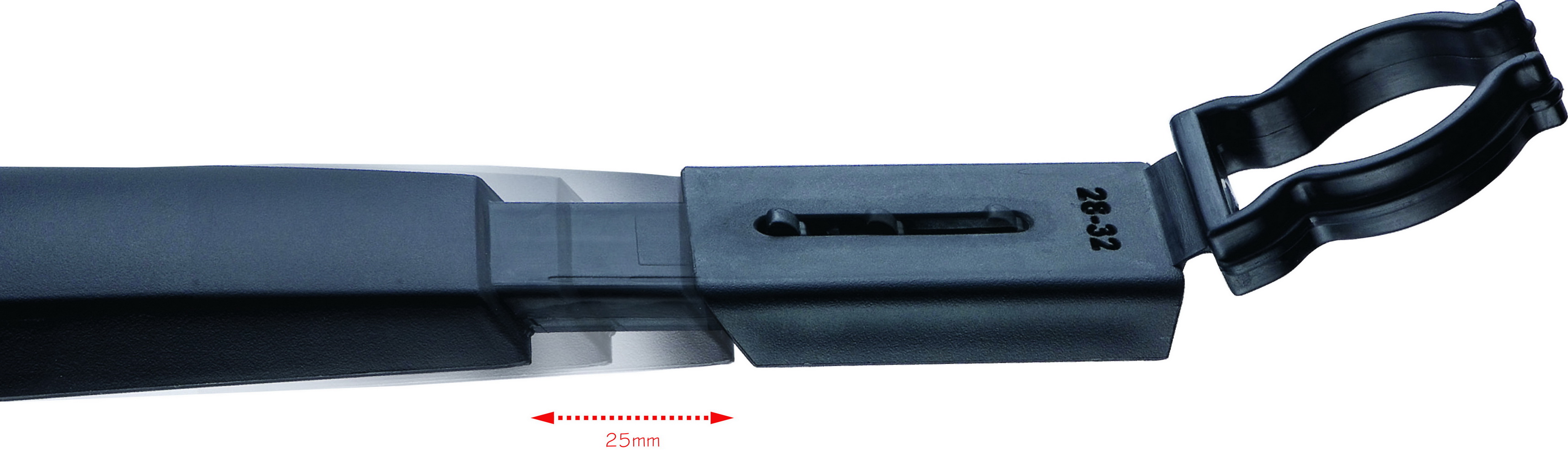

to be fixed on the seattube, and the C-clip can be adjustable 25mm length.

Equipped with a sliding fixed hanger included, their length can be adjusted by sliding

forward and backward to quickly slide on or slide off to fit the tire size and prevent

rainwater from splashing onto the rider.

Rear mudguard, the SlideIn hanger not only can be fixed into bridge's hole, but also can

be suitable for a bridge without hole.


Practical mudguards are made from the excellent performance material in

wear-resistant and impact-resiatant, it's not easily damaged, the accessory bolts and

installation kits all included and that all the metal hardware is ED black finish for

durablility and corrosion resistance.




Material : PP

Wheel Size : 26" / 28" / 700C Bikes


Suitable For Tire Widths : Maximum 1.75" / 38c

Length front fender :510 mm

Length rear fender : 663 mm

Mudguard width : 52 mm

Included hardware bolts

SlideIn hanger fittings

Rear mudguard : C-clip 25mm adjustable length / Fit diameter : 28mm ~ 31.8mm

Weight : 280 g (Included Fittings)

Color : Black

Feature : cycledesign logo / Made In Taiwan


 Long-enhancing shoulders in a U-shape profile

 Universal SlidIn hanger for multiple application / C-clip fastener can be adjustable in

    length

 Lightweight and impact-resistant

 All metal hardware is surface finished for durablility and corrosion resistance
